Altronix AL600ULM Access Power Distribution Module with Power Supply Charger, PTC Class Outputs, 12/24VDC at 6A, BC300 Enclosure

Altronix AL600ULM Access Power Distribution Module with Power Supply Charger, PTC Class Outputs, 12/24VDC at 6A, BC300 Enclosure

#49309

$452.87 USD
$0.00 USD $452.87 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left

Product Overview

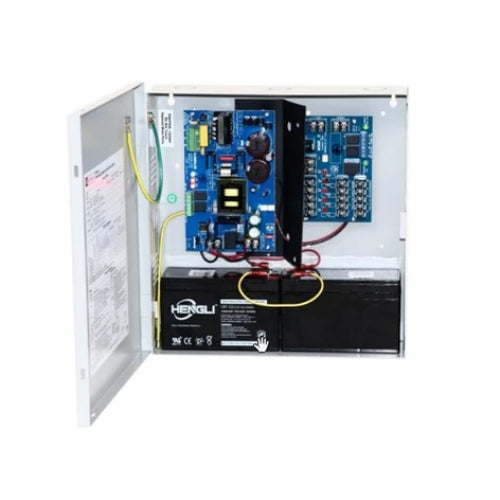

Introducing the Altronix AL600ULM Access Power Distribution Module, a reliable solution for your access control needs. This power supply/charger efficiently transforms a 115VAC, 60Hz input into five individually protected Class 2 Rated outputs, delivering 12VDC or 24VDC at 6A. Perfect for powering various access control devices such as Mag Locks and Electric Strikes, it supports both Fail-Safe and Fail-Secure modes. With a controlled trigger input and a versatile form 'C' dry output relay, it can also facilitate HVAC shutdown or elevator recall. Enhance your security system today with the Altronix AL600ULM! Order now to ensure optimal performance.

Main Features

  • Five (5) individual power-limited Class 2 outputs (auto-resettable)
  • Filtered and electronically regulated outputs
  • Thermal and short circuit protection with auto reset
  • Fire Alarm Panel or Access Control System trigger inputs. [NO] or [NC] supervised trigger input and polarity reversal trigger input (4mA draw from FACP)
  • Overload protection
  • Output relay energizes when unit is triggered (form “C” contact rated 1A @ 28VDC)
  • Supervision: - AC Fail - Battery Fail and Battery Presence
  • Built-in charger for sealed lead acid or gel type batteries
  • Instantaneous transfer to stand-by batteries
  • Power and input trigger LEDs

General Information

Name: Altronix AL600ULM Access Power Distribution Module with Power Supply Charger, PTC Class Outputs, 12/24VDC at 6A, BC300 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Management, Power Distribution Modules
UPC Code: 782239930852
Country of Origin: United States. Country of origin is subject to change.
