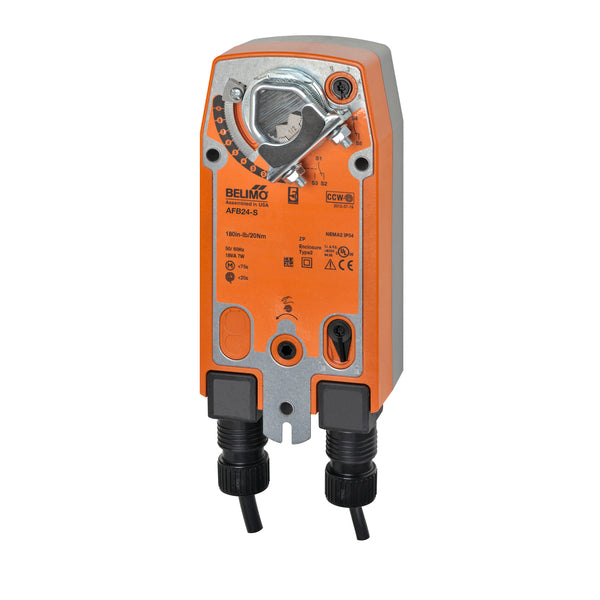

Belimo AFB24-S

Specifications

Voltage AC/DC  24 V
Power Consumption (Running) 5 W

Power Consumption (Holding) 2.5 W

Power Consumption For Wire Sizing 7.5 VA

Auxiliary Switches 2x SPDT

Torque 180 in-lb [20 Nm]

Control Type On/Off

Direction Of Motion Motor selectable by ccw/cw mounting

Direction of Rotation (Fail-Safe) Reversible with cw/ccw mounting

Manual Override 5 mm hex crank (3/16" Allen), supplied

Angle of Rotation 95°

Running Time (Motor) 75 s / 90°

Running Time (Fail-safe) <20 s

Degree Of Protection NEMA  2

Enclosure Type UL Enclosure Type 2

Ambient Temperature -22...122°F [-30...50°C]
