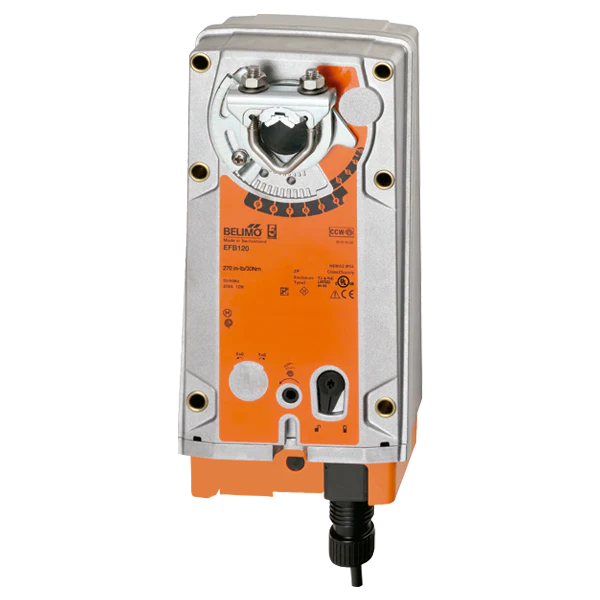

Belimo EFB120 Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100...240 V, On/Off

Belimo EFB120 Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100...240 V, On/Off

EFB120 Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100...240 V, On/Off

$160.00 USD
$160.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left
View full details

Product Details

Specifications


Voltage AC/DC
AC 100...240 V
Power Consumption (Running)
9 W
Power Consumption (Holding)
4.5 W
Power Consumption For Wire Sizing
21 VA
Torque
270 in-lb [30 Nm]
Control Type
On/Off
Direction Of Motion Motor
selectable by ccw/cw mounting
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Manual Override
5 mm hex crank (3/16" Allen), supplied
Angle of Rotation
95°
Running Time (Motor)
75 s / 90°
Running Time (Fail-safe)
<20 s
Degree Of Protection NEMA
NEMA 2
Enclosure Type
UL Enclosure Type 2
Ambient Temperature
-22...122°F [-30...50°C]
