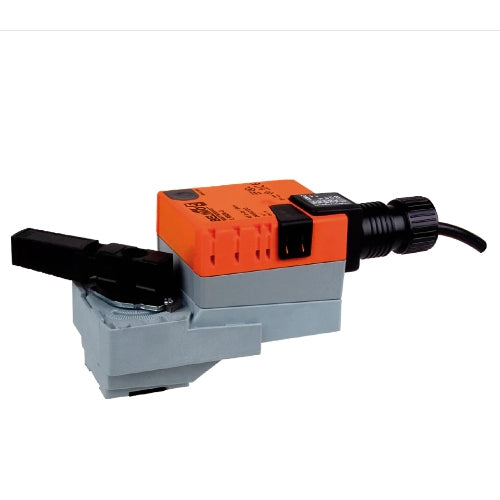

Belimo LRB24-3 Actuator, 24V, On/Off, Floating, Non Spring Return

Specifications

Voltage AC/DC  24 V

Power Consumption (Running) 1.5 W

Power Consumption (Holding) 0.2 W

Power Consumption For Wire Sizing 2.5 VA

Control Type Floating/3-point

Direction Of Motion Motor selectable with switch 0/1

Manual Override External push button

Angle of Rotation 90°

Running Time (Motor) 90 s / 90°

Degree Of Protection NEMA NEMA 2

Enclosure Type UL Enclosure Type 2
