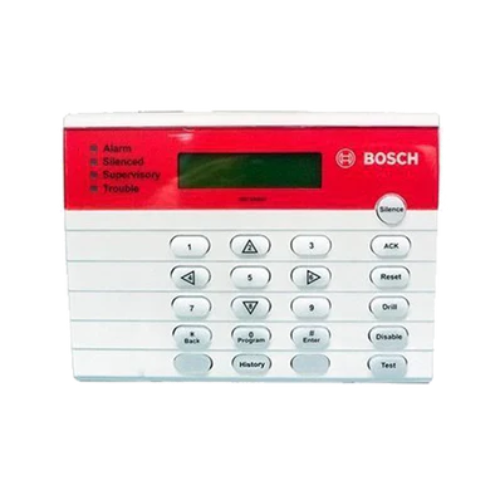

BOSCH FMR-7033

The FMR‐7033 LCD Keypad combines remote annunciator and controller functions for fire alarm systems controlled by the FPD‐7024 Fire Alarm Control Panels (FACPs). It operates identically to the built‐in user interface on the FACPs. You can connect up to four keypads to an FACP.

The keypad allows starting local system tests, system programming, system control, and viewing the system's event log remotely. It provides passcode‐protected access to system functions allowing installation in areas open to the general public.

The two‐line, 32‐character LCD (liquid‐crystal display) annunciates system status and events. The top line provides general system status information, while the bottom line identifies specific devices or instructions. An internal sounder signals alarm, supervisory, and trouble conditions and annunciates keystrokes during programming and control procedures. Four status LEDs indicate supervisory, alarm, trouble, and silenced conditions. A pull‐out slide with operating instructions fits behind the mounting base.
