EDWARDS 4-CPU Fire Alarm Control Panel

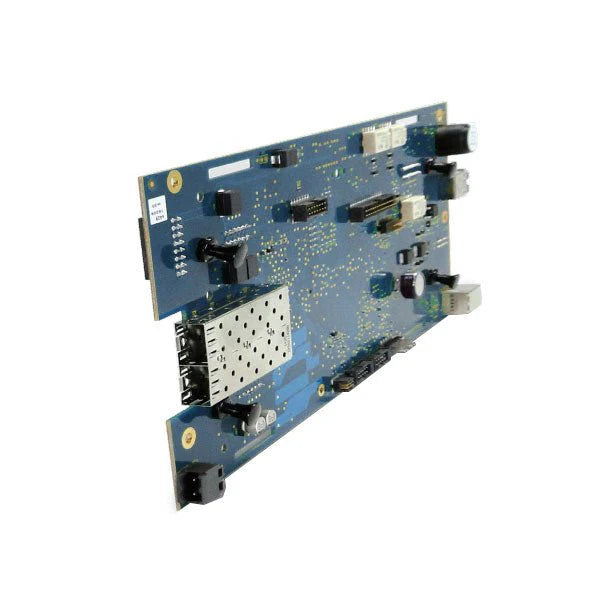

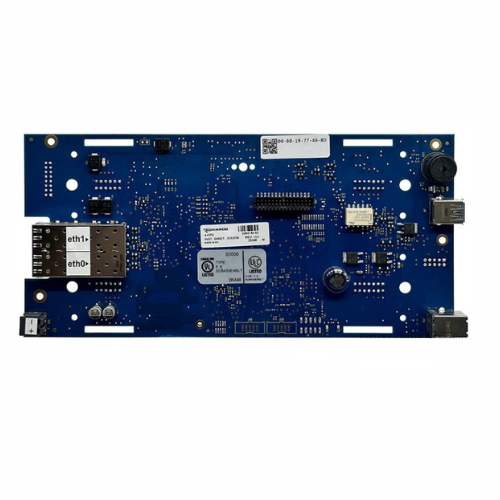

EST4’s Central Processing Unit, the 4-CPU, is a control panel card that manages data generated by local modules and acts as a nexus for system-wide network communication. It accomplishes this by pulling data from local rail modules in real time and facilitating both intra-module data exchange, and inter-node communications with remarkable speed and efficiency. The 4-CPU is, in essence, the gatekeeper for events reported to modules from field devices; it is the controller of audio data; the caretaker of event logs; the guardian of security; and, the link to central monitoring facilities. The EST4 Emergency Communications Platform is built upon system nodes, and the 4-CPU is controller of the nodes. The hardware that supports 4-CPU operation is robust enough to handle the complex and critical tasks it is assigned. The 4-CPU’s eight gigabytes of on-board memory storage holds nearly two hours of pre-recorded audio messaging, as well as an expansive project database. It also holds a large on-board history – large enough to handle more than 10,000 alarm events – and room to store up to 10,000 locked or frozen events held for investigative purposes.
