Edwards EST 4-PPS/M Primary Power Supply

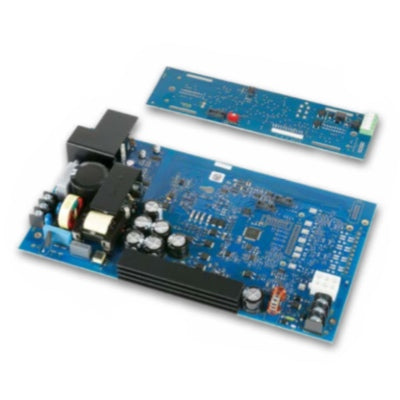

System power supplies consist of two assemblies, a high efficiency switch mode power supply card and a power supply monitor module. The monitor module mounts to the local rail and distributes the power from its supply to the local rail. The local rail distributes power from all power supplies to other local rail modules and user interface cards resulting in “Shared Power” throughout the system. The 4-PPS/M can be configured as a primary power supply (PPS), booster power supply (BPS), or booster charger (BBC). A 4-PPS/M configured as the PPS provides filtered, regulated power to the rail chassis modules as well as 24 VDC for operating ancillary equipment. The PPS consists of a power supply unit (PSU) mainboard and a monitor (MON) module.
