Edwards EST SIGA-MP2L Signature Module Mounting Plate

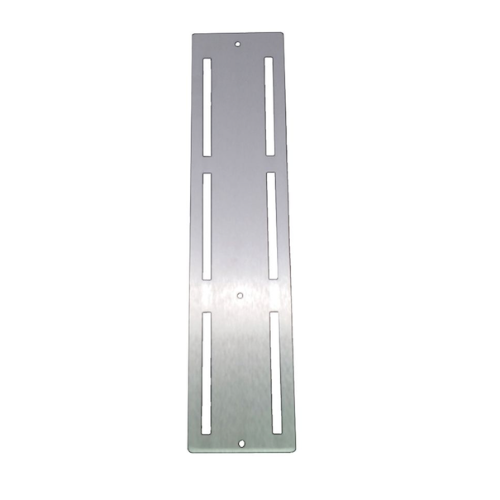

The SIGA-MP2L is a mounting plate which allows for installation of three (3) SIGA-CC1's, SIGA-CC2's., or SIGA-UM's (larger modules) or six (6) CT-1's, CT-2's, SIGA-CR's, SIGA-MM1's, or SIGA-WTM's (smaller modules). Any combination of the SIGA modules can be mounted on the SIGA-MP2L. The SIGA-MP2L is a flat aluminum plate which mounts in EST's standard equipment enclosures. (Refer to the Network Hardware Technical Reference Manual Vol. 1 for information on equipment enclosures.) The plate can be mounted in any standard 1/2 footprint OPTION module position on the inside, left/right side of the enclosure. The SIGA-MP2L removes the need for gang boxes and provides the ease of mounting needed equipment in a common enclosure.
