EDWARDS KPDISP Life Safety Keypad & Display

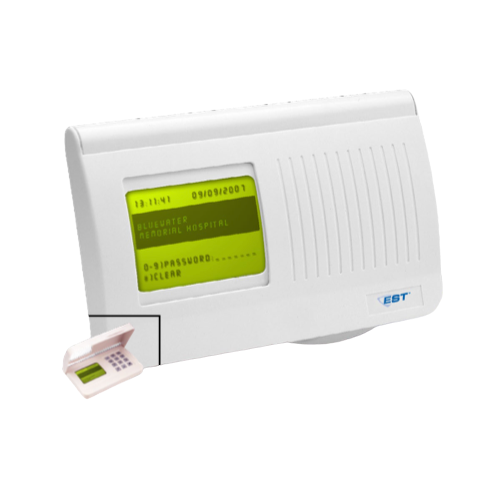

The KPDISP is a combination keypad and dot-matrix display designed for use with the EST3 integrated system. The unit features a large LCD display and telephone-style keypad housed in an attractive Cycoloy® case. A removable cover is provided to prevent accidental keypad activation and protect against dirt.

The KPDISP transmits and receives information from/to the EST3 system. Communications between the KPDISP and the EST3 are fully supervised, providing the ultimate in reliability. KPDISP data is stored in non-volatile memory. Power to the KPDISP is provided by the EST3, ensuring a reliable, supervised and backed-up power source.

The KPDISP supports bilingual operation, and can be programmed to automatically display the language of the user.

The display is backlit, and lights whenever a key is pushed. An automatic timer extinguishes the light after a brief delay. The keypad features tactile and audible feedback and is backlit at all times. To aid in locating the keypad in the dark, the back lighting is visible even with the cover closed.
