Product Details

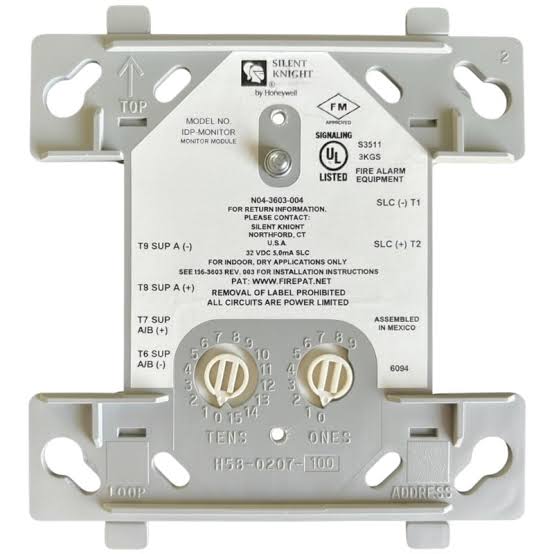

The IDP-MONITOR is an addressable monitor module for use with the
Honeywell Farenhyt Series fire alarm control panels (FACPs). The IDPMONITOR acts as an interface to contact devices, such as waterflow
switches and pull stations.
The IDP-MONITOR supports Class A supervised or Class B supervised
wiring to the load device. Conventional 4-wire smoke detectors can be
monitored for alarm and trouble conditions.
INSTALLATION
The IDP-MONITOR mounts directly into a 4” square electrical box. The box
must have a minimum depth of 2-1/8”. A surface mount electrical box
(System Sensor® PN SMB500) is available from Honeywell.
COMPATIBILITY
The IDP-MONITOR is compatible with the following Honeywell Farenhyt
Series FACPs:
• IFP-2100 / IFP-2100ECS / RFP-2100
• IFP-2000 / IFP-2000ECS / RPS-2000
• IFP-1000 / IFP-1000ECS
• IFP-300 / IFP-300ECS
• IFP-100 / IFP-100ECS
• IFP-75
• IFP-50
📄 Datasheet (Technical Specifications):
Download IDP-MONITOR Datasheet (PDF)
📘 Installation Manual:
Download IDP-MONITOR Installation Manual (PDF)
