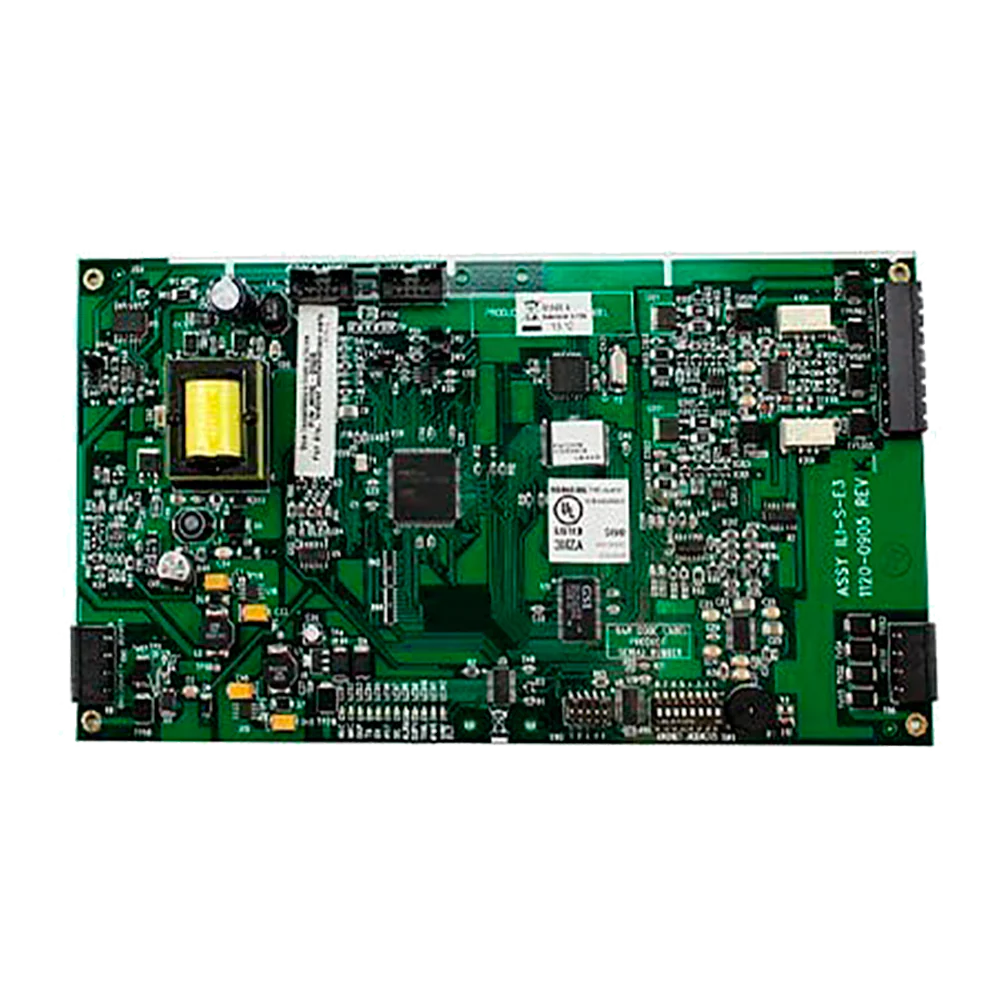

FCI GAMEWELL ILI-S-E3

The Intelligent Loop Interface - Expansion Board (ILI- S-E3) provides the E3 Series control panel with two additional electrically isolated signaling line circuits. The layout is similar to the ILI-MB-E3 except a number of components are omitted. The ILI-S-E3 occupies one node on the Broadband network. The ILI-S-E3 provides two signaling line circuits and terminals for the connections to up to 159 detectors, 159 modules and 159 addressable sounder bases per SLC in Velociti mode. In CLIP mode, each SLC supports 99 detectors and 99 modules.
