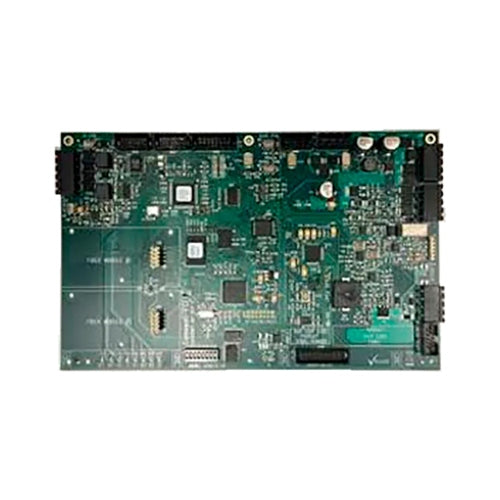

FCI GAMEWELL INI-VGC

The INI-VGC Voice Gateway Module provides command and control functions for the INCC Command Center. The INCC serves as the point of interface between an operator and the system’s audio evacuation, fire fighter intercom, and building control circuits. A typical INCC assembly consists of an Intelligent Network Interface-Voice Gateway (INI-VGC) Module and one or more Addressable Switch Modules (ASM-16). Each INIVGC can support up to sixteen (16), ANU-48 LED Driver Modules or ASM-16s for a total of 256 fully programmable switches and 768 LEDs (red, yellow, and green). The INI-VGC occupies a single node on the E3 Broadband network and is connected by a single pair of twisted, unshielded wire, fiber-optic cable or any combination of the two. The INI-VGC-UTP is not equipped with fiber-optic connectors.
