Product Details
Product Overview
Externally mounted amplifi ers provide an additional 50 or 125 watts of addressable audio power when con nected to the ECC-50/100 Up to eight distributed amplifi ers can be connected to the ECC-50/100 for a total of 1100 watts of audio power Includes four built-in speaker circuits which are expand able to eight circuits with an optional ECC-CE4 module (A maximum of 24 audio circuits) Speaker output voltage is fi eld confi gurable on ECC-50DA for either 25 volts or 70.7 volts of operation Includes a built-in power supply and backup battery charger ECC-50BDA provides 50W of power with 50W as back-up. It can also provide 100W of power (100W of back-up power requires ECC-50WBU)
Main Features
The ECC-50BDA includes eight onboard fully supervised speaker circuits zones
Easy setup and configuration by using a simple, built-inWeb based programming utility
The ECC-50BDA supports the use of low frequency sounders per UL 464
General Information

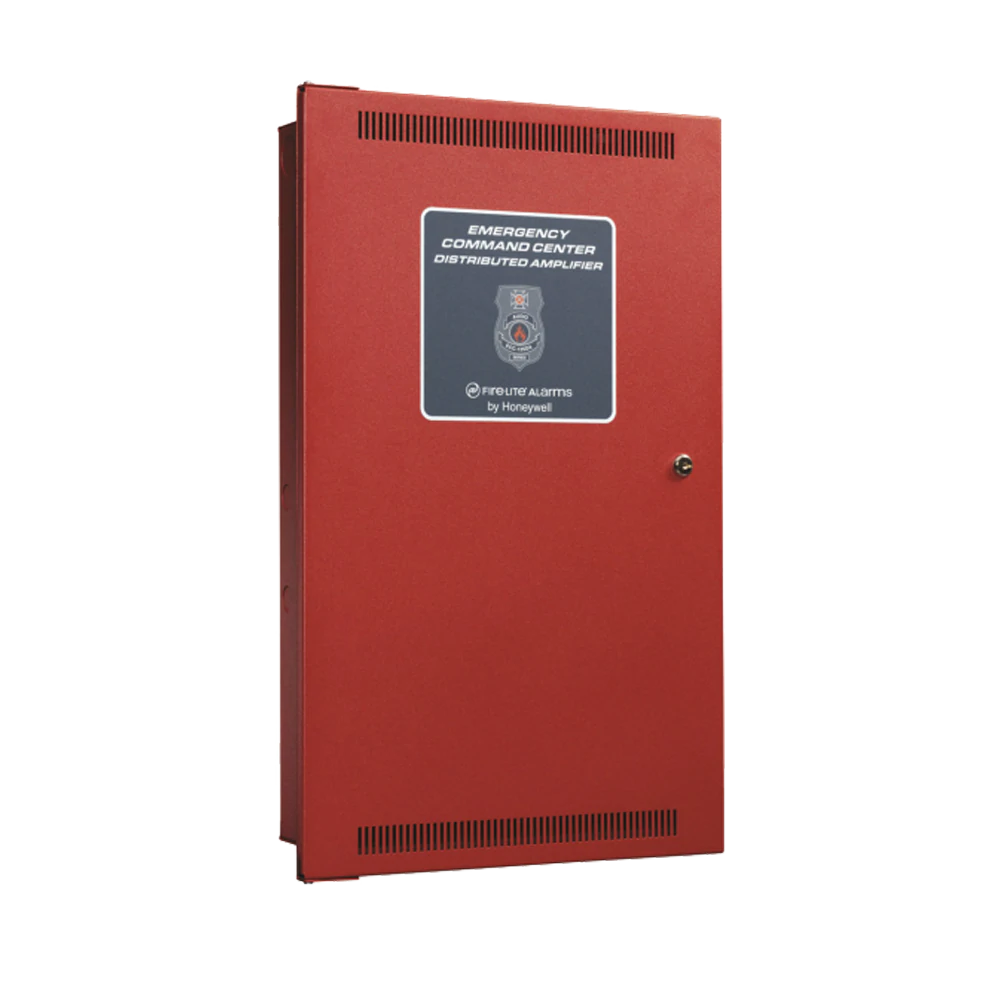

Name: Fire-Lite ECC-50DA Distributed Audio Amplifier, 50 W, 120V
UPC Code: 783008111984
Country of Origin: United States. Country of origin is subject to change.
