Fire-Lite Alarms ECC-RM

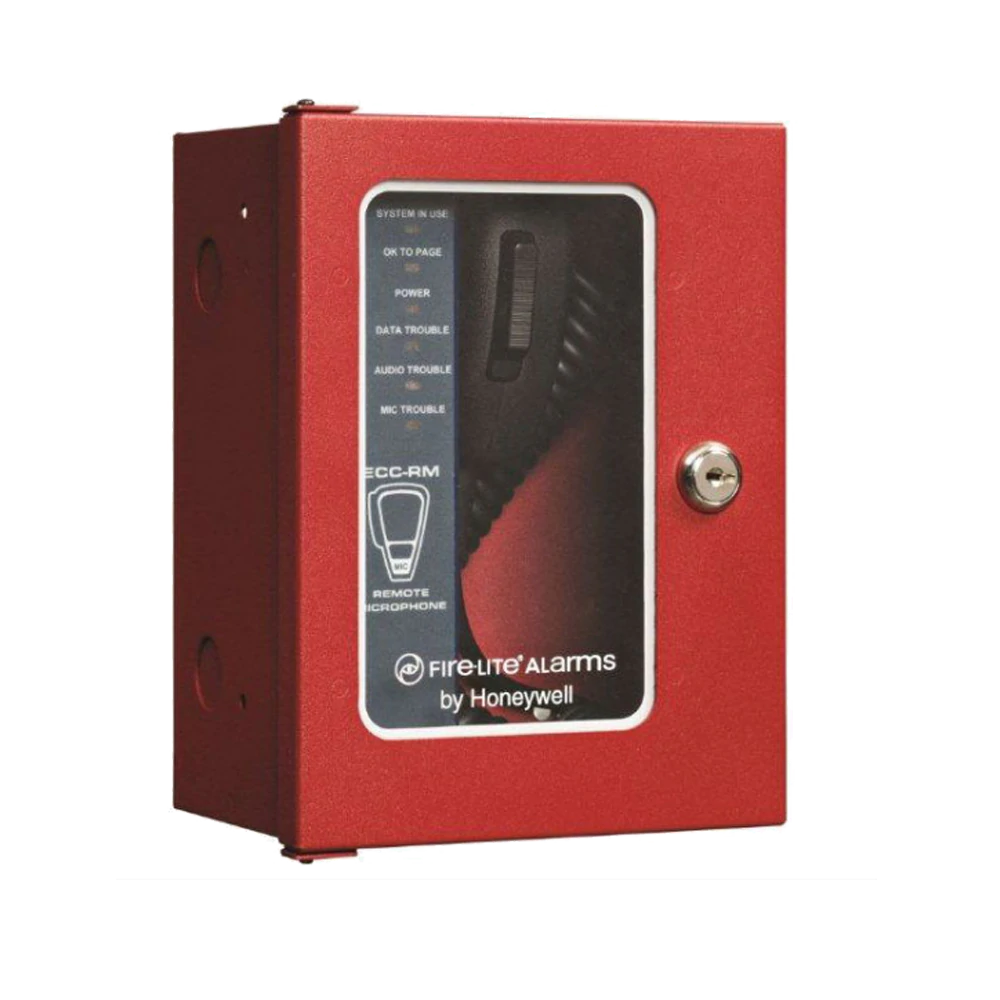

Firelite’s ECC-RM is an optional Remote Microphone that is compatible with the ECC-50/100(E) Emergency Command Center for fire protection applications. It is part of a family of external remote consoles that allows for extending the opera- tor interface to remote locations within a building. It is housed in a cabinet with a keyed or an optional thumb lock to limit access to qualified personnel. The ECC-RM remote microphone allows for ALL CALL paging to be broadcast over the speaker circuits when depressing the microphone's push-to talk switch. The RM requires an external data bus connection, an external audio riser connection, and an external operator interface power connection (24 Volts DC) from the ECC-50/100 main console.
