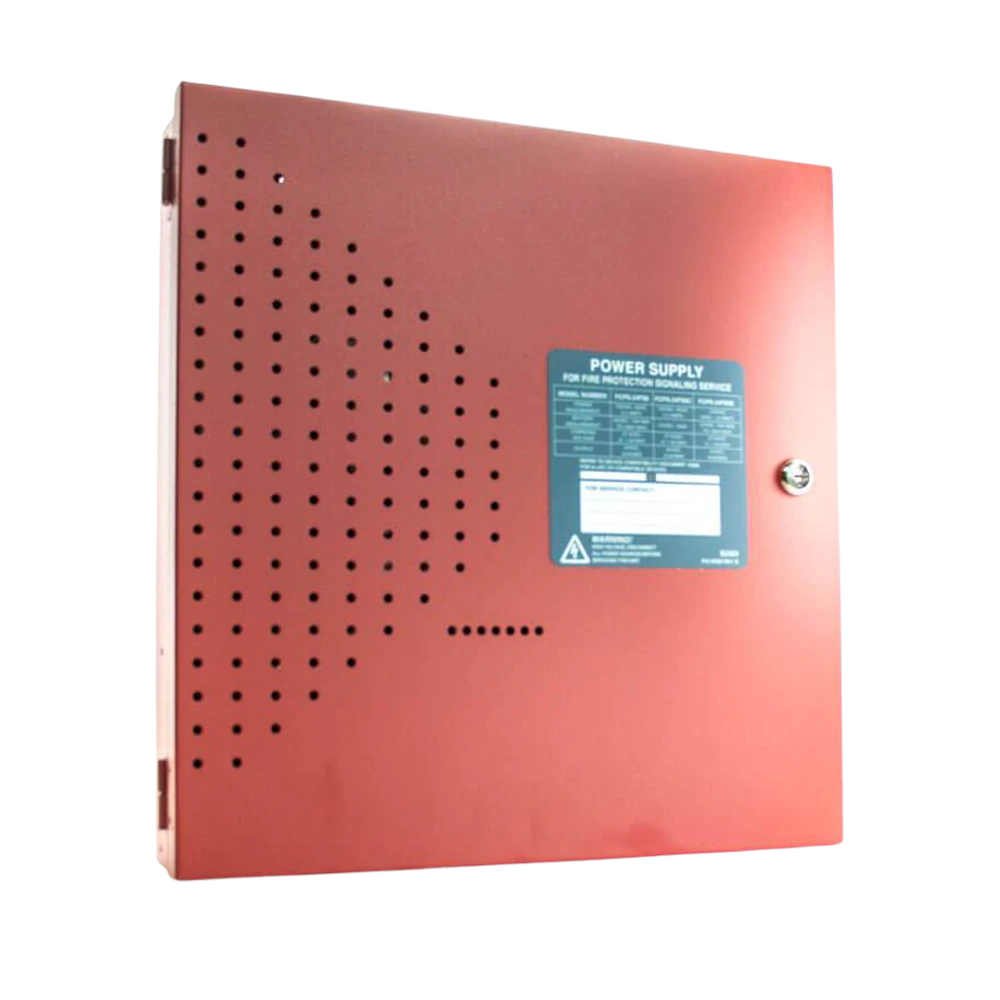

Fire-Lite Alarms FCPS-24FS8

The Fire•Lite FCPS-24FS8(C/E) is a compact, cost-effective, 8- amp remote power supplies with battery charger. The FCPS- 24FS8C/E) may be connected to any 12 or 24 volt fire alarm control panel (FACP) or may stand-alone. Primary applications include noti- fication appliance (bell) circuit (NAC) expansion (to support ADA requirements and NAC synchronization) or auxiliary power to sup- port 24 volt system accessories. The FCPS provides regulated and filtered 24 VDC power to four notification appliance circuits config- ured as either two Class B (Style Y) and Class A (Style Z, with ZNAC-4 option module) or four class B only. Alternately, the four out- puts may be configured as any combination of resettable/non-reset- table power outputs (optimal for powering four-wire smoke detectors. The FCPS-24FS8(C/E) also contains a battery charger capable of charging up to 18.0 Amp hour batteries. The FCPS- 24FS8C is ULC-listed.
