Product Details

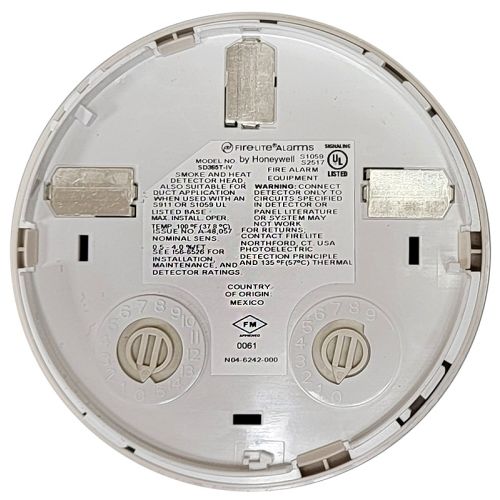

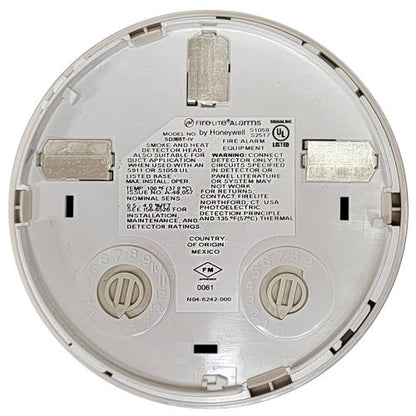

The Fire-Lite SD365T-IV is an intelligent addressable plug-in photoelectric smoke detector with a built-in 135°F (57°C) fixed-temperature thermal device for Fire-Lite addressable fire alarm control panels. It uses an enhanced optical sensing chamber for broad smoke detection, rotary decimal addressing for point ID location, and includes the B300-6-IV detector base. This ivory “-IV” service model supports both LiteSpeed and CLIP protocol.
Key Specifications:
Type: Intelligent addressable photoelectric smoke detector with 135°F fixed heat
Core Function(s): Photoelectric smoke sensing plus fixed-temperature heat detection (135°F)
Loop/Protocol: Fire-Lite SLC; LiteSpeed and CLIP
Power: 15 to 32 VDC peak from SLC; 200 μA max average standby @ 24 VDC (LED enabled); 4.5 mA max current @ 24 VDC (“ON”)
Indicators/UI: Two LEDs; LED blinks when polled and latches in alarm; rotary decimal addressing; remote test feature from the panel; built-in functional test switch activated by external magnet; walk test with address display (LiteSpeed systems only)
Operating Range: 32°F to 100°F (0°C to 38°C)
Humidity Range: 10% to 93% RH, non-condensing
Compatible Bases & Accessories:
B300-6-IV – Ivory 6-inch standard flanged low profile mounting base
B501-IV – Ivory 4-inch flangeless mounting base
B200S-IV – Ivory intelligent addressable sounder base (LiteSpeed)
B224BI-IV – Ivory isolator detector base
B224RB-IV – Ivory relay detector base
RA100Z – Remote LED annunciator, 3-32 VDC. For use with B501 and B300-6.
TR300-IV – Ivory trim ring
System Compatibility: Works with Fire-Lite intelligent addressable fire alarm control panels that support LiteSpeed and CLIP protocol on the SLC loop.
📄 Datasheet (Technical Specifications):
Download SD365T-IV Datasheet (PDF)
📘 Installation Manual:
Download SD365T-IV Installation Manual (PDF)
