Product Details
Product Overview

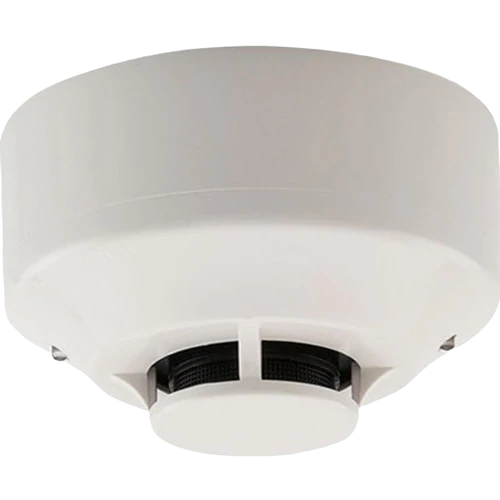

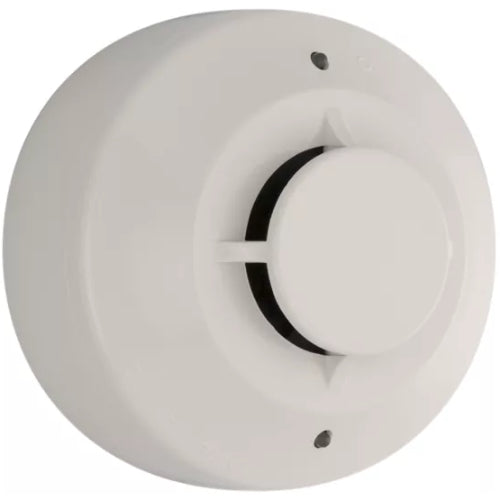

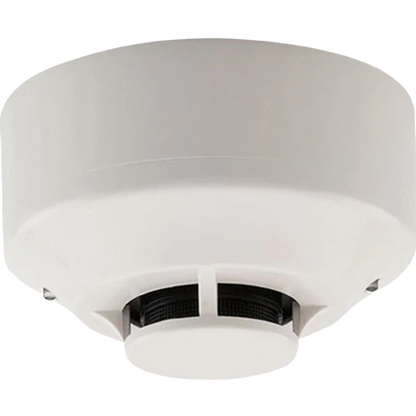

W-SD355 and W-SD355T addressable, wireless photoelectric detectors use a state of the art photoelectric sensing chamber to provide open area protection. The W-SD355T adds thermal sensors that will alarm at a fixed temperature of 135°F (57°C). They are intended for use with the MS-9200UDLS and MS-9600(UD)LS Addressable Fire Alarm Control Panels. The W-SD355 and W-SD355T communicate with the fire alarm control panels through a wireless mesh network to the W-GATE wireless gateway.
What’s Included
- W-SD355 Wireless Intelligent Photoelectric Smoke Sensor
- 4 x Batteries
- 4" Wireless Mounting Base
Main Features
- Unique single-source, dual-chamber design to respond quickly and dependably to a broad range of fires.
- Removable cover and insect-resistant screen for simple field cleaning.
- withstands air velocities up to 4,000'-per-minute (20 m/sec.) without triggering a false alarm.
- Factory preset at 1.5% nominal sensitivity for panel alarm threshold level.
- Cascading Mesh Wireless Technology (902-928 MHz frequency).
- Any wireless device can be added to act as a repeater.
- Requires (4) CR-123A batteries (included).
