FIRE-LITE ECC-50W-70V

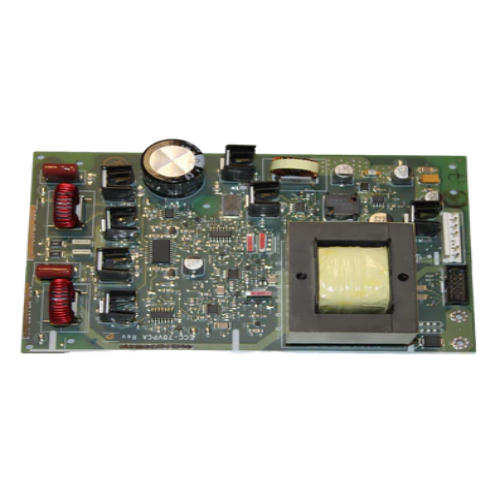

Fire-Lite ECC-50W-70V AUDIO AMPLIFIER MODULE. (New)

A 25V, 50-watt audio amplifier module. Adding a second speaker circuit increases the total ECC-50/100 power output to 100 watts. It can b e used as a backup amplifier.

Main Features
UL Listed to UL 2572 communication (Control Units Mass Notification Systems) and UL 864 (emergency voice eV ACuation for fire).

Removable terminal blocks for ease of servicing and module replacement.

50W of 25V audio power (expandable to 100W) RMS.

2 amp Notification Appliance Circuit (NAC) output, sync generator, or follower for System Sensor, Wheelock, or Gentex protocols.

An optional 70.7VRMS conversion transformer is available for the primary amplifier.

That speaker wiring continues to b e supervised in standby and alarm. And wh en background music is playing with this optional transformer installed.

520Hz square wave tones available can b e uploaded to the ECC-50/100 to meet NFPA Low-Frequency requirements.
