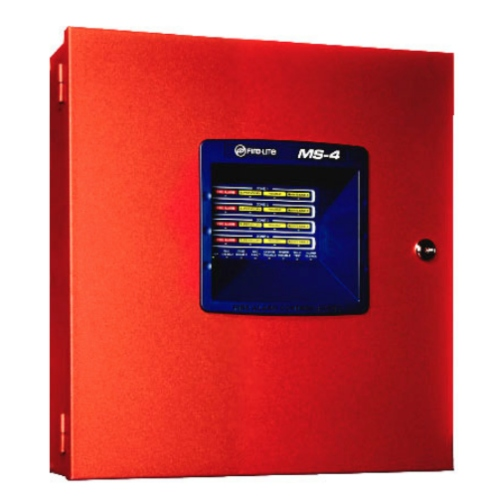

Fire-Lite MS-4E Conventional Fire Alarm Control Panel, 4-Zone, 240VAC, 50/60Hz, 2.3A, Red

Fire-Lite MS-4E Conventional Fire Alarm Control Panel, 4-Zone, 240VAC, 50/60Hz, 2.3A, Red

#49071

$905.00 USD
$905.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Product Overview

The Fire-Lite MS-4 and MS-4E Fire Alarm Control Panels (FACPs) bring the latest in microprocessor technology to conventional fire controls. The MS-4 is compatible with the i³™ smoke detectors from System Sensor, with drift compensation, maintenance alert, and freeze warning. Automatic synchronization of audio/visual devices with three selections for manufacturer protocol. The Notification Appliance Circuit (NAC) protocol can silence audible devices while strobes continue to flash, using a single pair of wires. The MS-4 is compatible with conventional input devices such as two- and four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices. Refer to the FireLite Device Compatibility Document for a complete list of compatible devices. Note: Unless indicated otherwise, the term "MS-4" refers to both MS-4 and MS-4E models.

Main Features

  • Four Style B Initiating Device Circuits
  • I3 Technology
  • NACs programmable
  • One Style Y (Class B) NAC
  • 24 VDC
  • Silent or audible walk test operation mode commanded from the front keypad
  • Piezo sounder for alarm, trouble, supervisory and maintenance
  • Each zone may be programmed for supervisory or fire
  • Form-C alarm, trouble, and supervisory relays
  • Four-zone conventional FACP with 240 VAC, 50 Hz, 1.15 A operation

General Information

Name: Fire-Lite MS-4E Conventional Fire Alarm Control Panel, 4-Zone, 240VAC, 50/60Hz, 2.3A, Red
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Control Panels, Fire Alarm Control Panels
UPC Code: 783008106836
Country of Origin: United States. Country of origin is subject to change.
