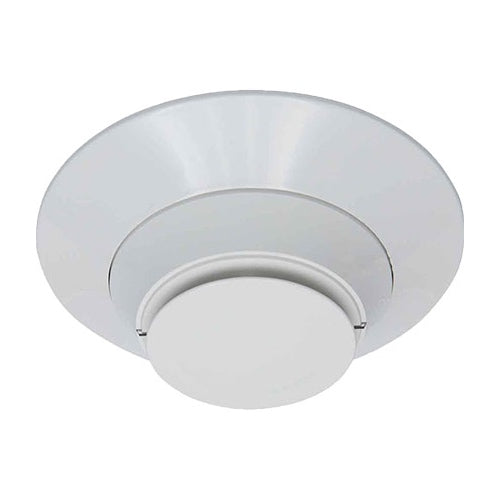

Fire-Lite SD365-IV

The Fire-Lite SD365-IV Series Addressable Photoelectric Smoke Detector is made exclusively for use with FireLite’s addressable fire alarm control panels. The SD365 Series point ID capability allows each detector’s address to be set with rotary, decimal address switches.

Compatible with LiteSpeed and CLIP protocol systems.

Includes mounting base B300-6-IV and trim ring TR300-IV.

COMPATIBLE BASES and ACCESSORIES:
— B300-6-IV: Ivory, standard flanged low-profile mounting base
— B501-IV: Ivory, standard European flangeless mounting base
— B200S-IV: Ivory, Intelligent, programmable sounder base
— B200SR-IV: Ivory, Intelligent sounder base for retrofit applications
— B200S-LF-IV: Ivory, Low Frequency Intelligent, programmable sounder base
— B200SR-LF-IV: Ivory, Low Frequency Intelligent sounder base for retrofit applications
— B224RB-IV: Ivory, plug-in System Sensor relay base
— B224BI-IV: Ivory, plug-in System Sensor isolator detector base
— TR300-IV: Ivory, replacement flange for B210LP or B300-6 bases
— RA100Z(A): Remote 3–32VDC LED annunciator, mounts to a U.S. single-gang electrical box, for use with B501 and B300-6 bases.

NOTE: The Fire-Lite SD365-IV comes with B300-6-IV Detector Base INCLUDED.

NOTE: Replaces the SD355.
