FIRERAY F5000 (5000-103)

Product Description – Fireray F5000 (5000-103)

The Fireray 5000 (5000-103) is a state-of-the-art reflective infrared beam smoke detector system, engineered for expansive, open environments like warehouses, atriums, industrial zones, and large retail spaces where point detectors may be impractical.

Key Features & Benefits:

Auto-Align & AutoOptimise™: Equipped with automatic beam alignment and self-correcting optics to maintain optimal signal strength, even in the face of building drift or lens contamination.

Dual-Head Capability: Supports up to 2 detector heads per ground-level controller, reducing installation complexity and cost.

Laser-Assisted Prism Alignment: Features an integrated laser pointer to ensure quick, precise prism positioning during installation.

Wide Detection Range: Detectable distances span 8 m to 100 m (≈ 26 ft to 328 ft), covering up to 19,800 sq ft (≈ 60 ft × 330 ft).

Programmable Alerts: Configurable obscuration thresholds (10 %–60 % in 1 % steps) and delay-to-alarm/fault settings (2–30 seconds), enabling tailored system responses.

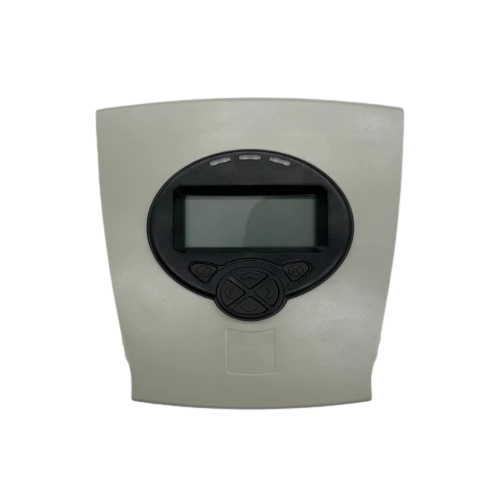

Built-in Diagnostics: Features separate Fire and Fault relays per head, a user-friendly low-level remote control unit with an LCD, and event logging for up to 50 recent events per detector.

Regulatory Compliance: Meets key standards including UL268, FM, and EN54-12, ensuring broad recognition across installations.

Ideal For:
Large-scale, open environments — e.g., industrial roofs, logistics hubs, auditoriums — where traditional smoke detection struggles with coverage effectiveness.
