Product Details

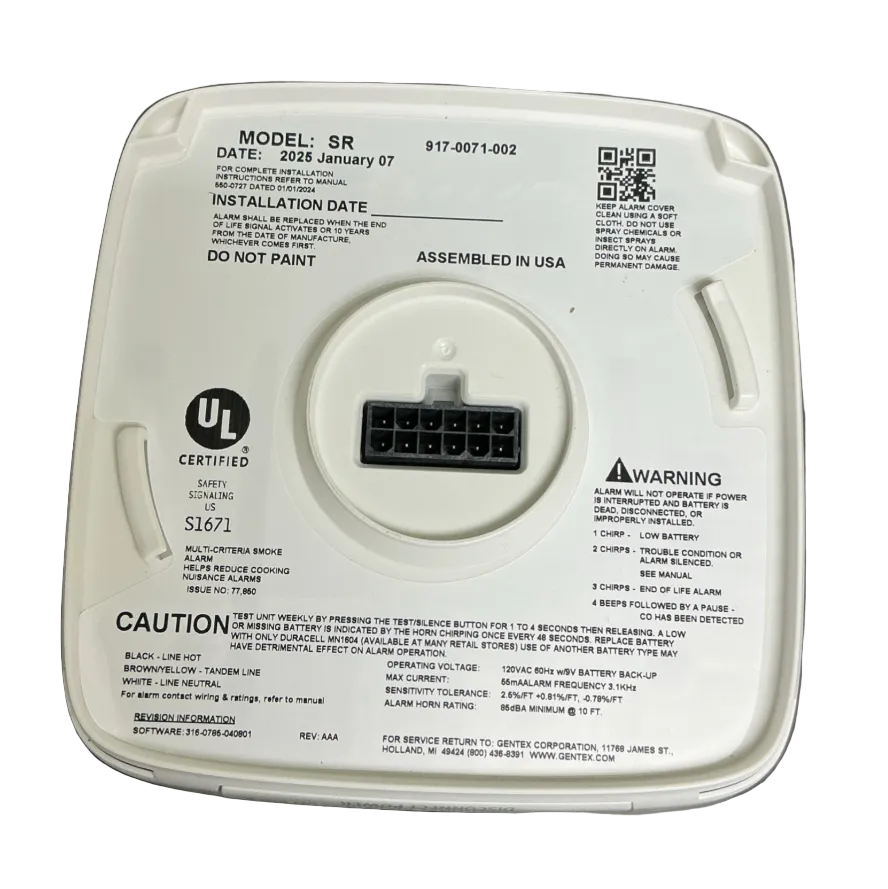

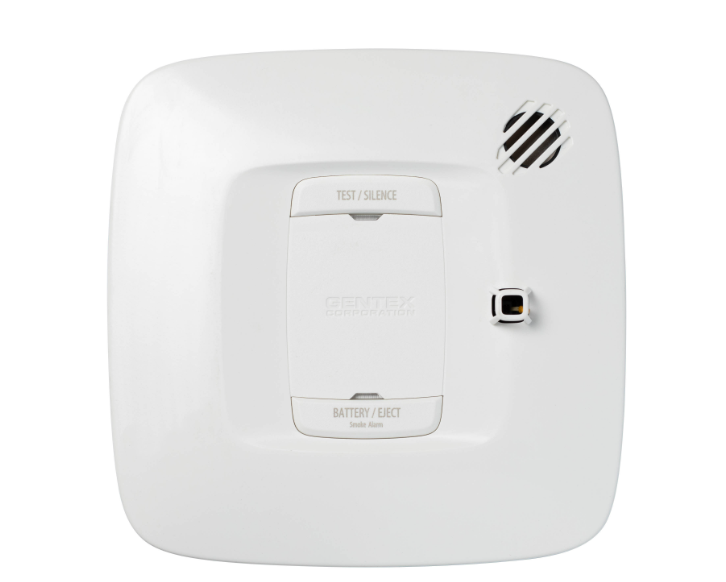

Gentex SR is a 120V Photoelectric Smoke Detector w/ Relay.
Features one set of Form A/C relay contacts

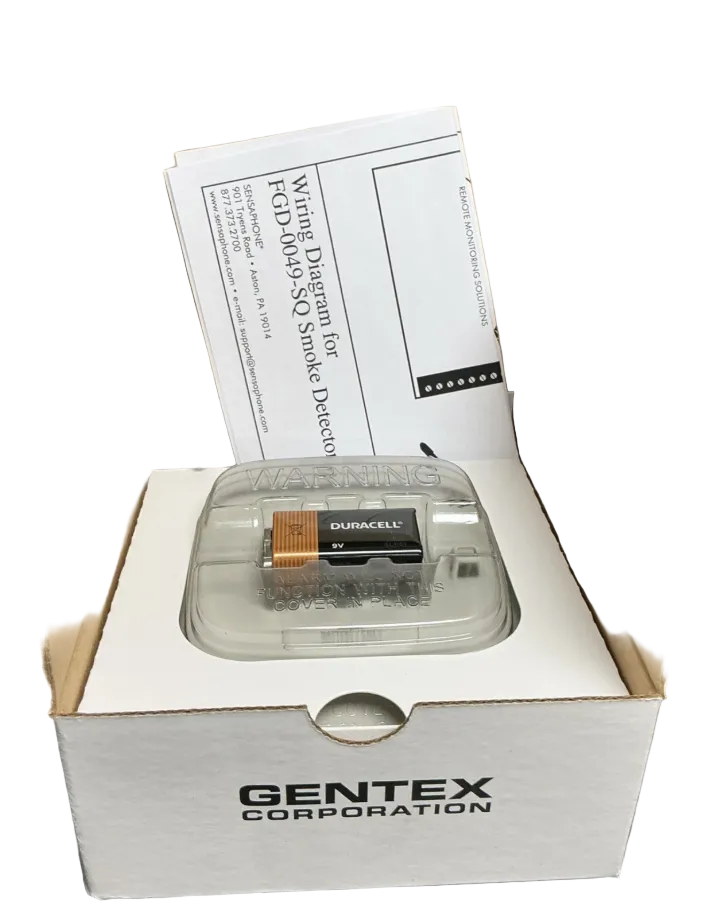

Use only Duracell® MN 1604 battery for battery backup. (Available at many retail stores.)
Use brown/yellow wire to tandem interconnect this device to S, SR, S220, SR220, STRR, SHRR, H, H220, C, CR, SC, SCR, SCRR AS WELL AS THE GENTEX GN-503 SERIES, CO1209 SERIES AND S1209 SERIES.
This device will not connect Gentex legacy products: 7100/7103, 9120/9123, GN-200/GN-203, GN-300/GN-303, 710CS/7103CS, 7109CS/7139CS Series
THE SR PRODUCT WIRING HARNESS IS NOT INTERCHANGEABLE WITH OTHER MODELS.
Mounting hardware adapts to standard junction boxes
📄 Datasheet (Technical Specifications):
Download Gentex SR Datasheet (PDF)
📘 Installation Manual:
Download Gentex SR Installation Manual (PDF)
