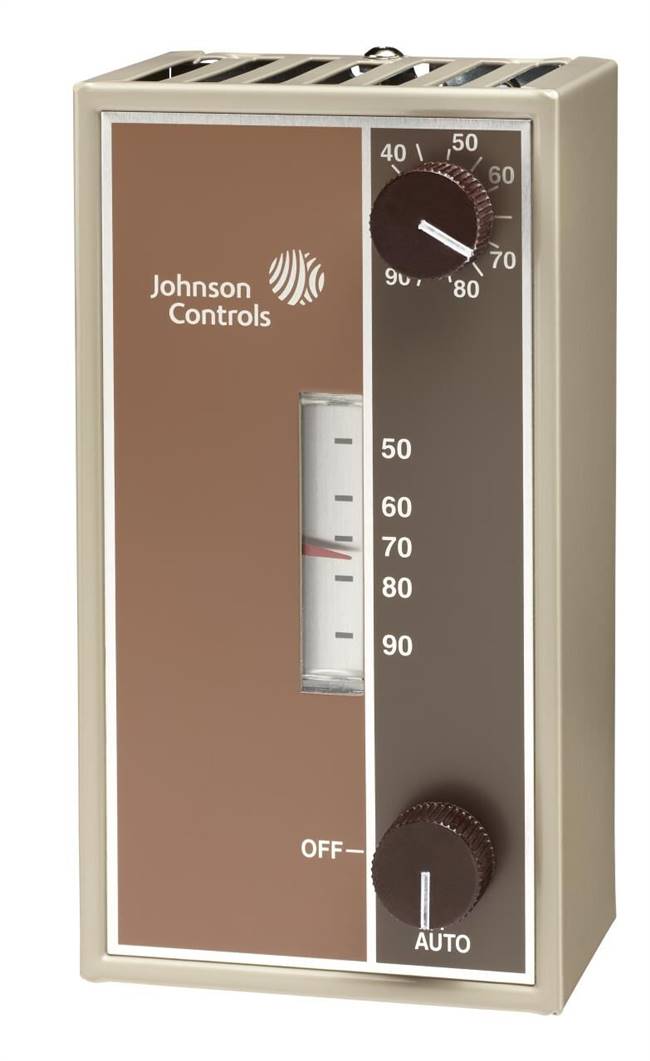

Johnson Controls T22BBC-1C

LINE VOLTAGE WALL THERM; THERMOSTAT; F/HTG 40/90F; SPST; MED DUTYKNOB; ADJ AUTO-OFF-FAN SW

Description

For line voltage control of residential, commercial, or industrial heating or year-round air conditioning. Heat or cold anticipators are not required. The liquid-charged temperature sensing element and highly efficient diaphragm and leverage provide close temperature control.

Refer to the following documents for important product application information:

• T22 Series Line Voltage Thermostats with Selector Switch Product Bulletin (LIT-125630)
• T25 Two-Stage Room Thermostat Product Bulletin (LIT-125640)
• T26 Series Line Voltage Thermostats Product Bulletin (LIT-125645)

Features

• attractive beige colored, high-impact plastic enclosure (T26 Series)
• close differential without the need for anticipators
• bi-metal thermometer supplied as standard except where indicated
• equipped with adjustable dial stops (T26 Series)

Specifications

Temperature range is 40 to 90°F (5 to 30°C), except energy conservation models.

Accessories

• replacement knobs and faceplates
• If the T22/T25/T26 Series Line Voltage Wall Thermostat (Heating, Cooling, or Heating and Cooling) fails to operate within its specifications, replace the unit. For a replacement thermostat, contact the nearest Johnson Controls representative.

Repair Information

If the T22/T25/T26 Series Line Voltage Wall Thermostat (Heating, Cooling, or Heating and Cooling) fails to operate within its specifications, replace the unit. For a replacement thermostat, contact the nearest Johnson Controls representative

Applications

Use for line voltage control of heating and cooling equipment

• T22 Series Line Voltage Thermostats with Manual Switch
• Heat Control Type
• 24-277 VAC Supply Voltage
