Kidde 76-330002-101

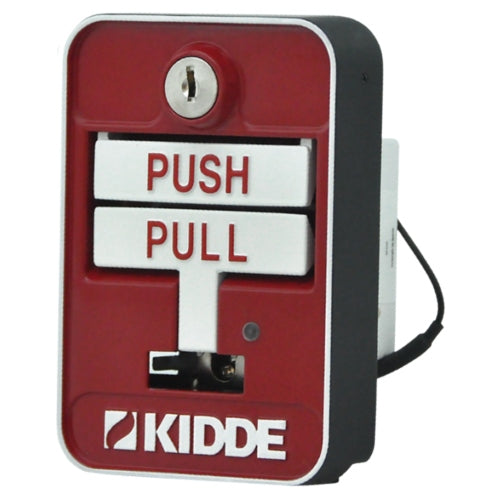

The Addressable Manual Pull Station is an intelligent initiating device that contains its own SmartOne® Addressable Input (AI) module and interfaces directly to a Kidde Fire Systems intelligent control unit operating SmartOne communications protocol. The Initiating Device Circuit (IDC) is wired as NFPA 72 (2002 edition) Class B.

The Pull Station is constructed of heavy die-cast aluminum for long life and uses an internal toggle switch for reliable operation. While the Pull Station is designed for quick, efficient emergency response, its double action PUSH/PULL levers prevent accidental operation.

Similar to other SmartOne devices, the unit is field programmable using the control unit keypad or Hand-Held Programmer. The owner location message and reporting type can be customized by the use of a programming utility utilized with the control panel.

A status LED is mounted on the unit and indicates the status by a 2 or 9 second flash interval. A Trouble condition inhibits the status LED completely.
