Product Details

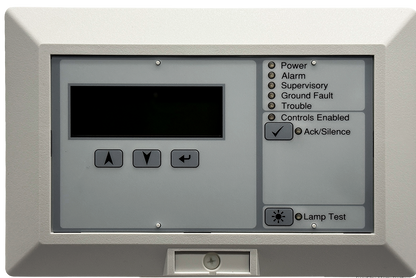

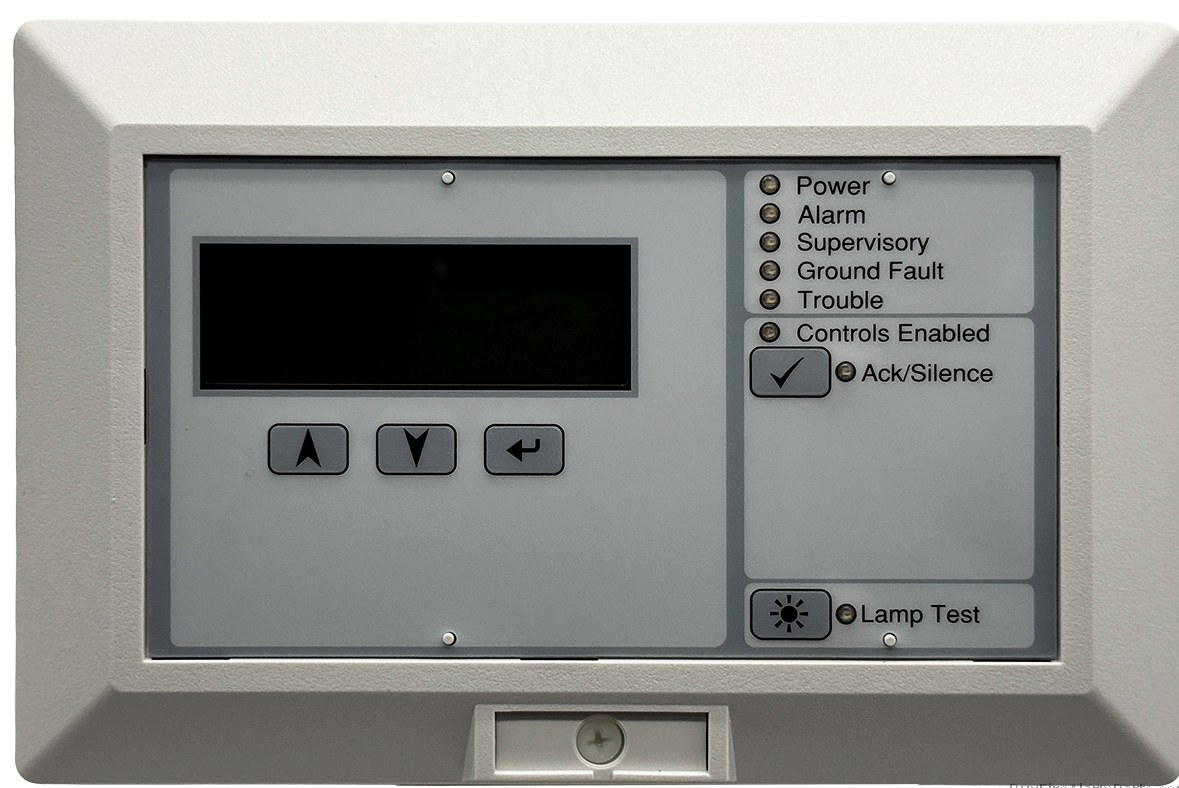

The Kidde K-RLCD-2 is an R-Series LCD remote annunciator that provides remote fire alarm system status and event information for compatible Kidde Commercial control panels. It features a backlit 4-line by 20-character LCD, status LEDs, an internal buzzer, and RS-485 communication with acknowledge/silence and lamp test functions.
Key Specifications:
Type: LCD remote fire alarm annunciator
Core Function(s): Provides remote system status, event information, acknowledge/silence, and lamp test functions
Display: Backlit LCD with 4 lines of 20 characters
Communication: RS-485; Class B/DCLB, redundant Class B/DCLB, or Class A/DCLA
Power: 24 VDC continuous
Current: 61 mA standby; 90 mA alarm
Indicators/UI: Power, Fire Alarm, Supervisory, Ground Fault, Trouble, and Controls Enabled LEDs with internal buzzer
Controls: Ack/Silence and Lamp Test; no Reset, Signal Silence, or Drill controls

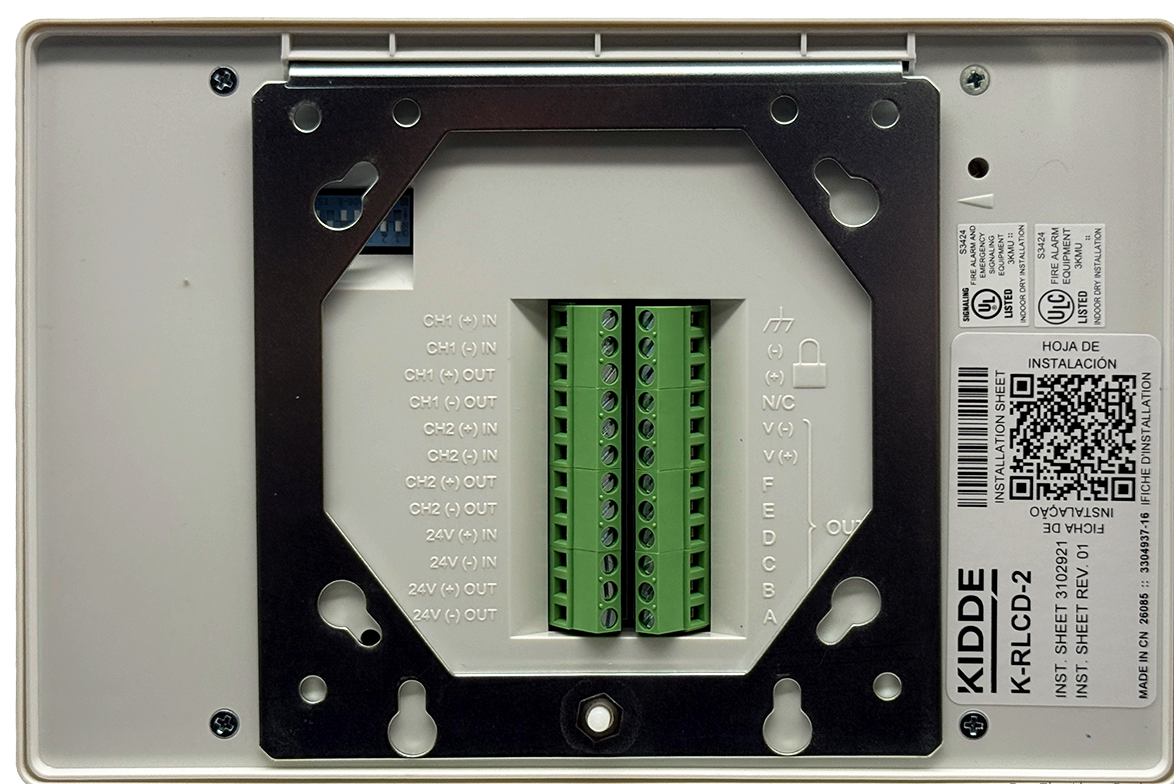

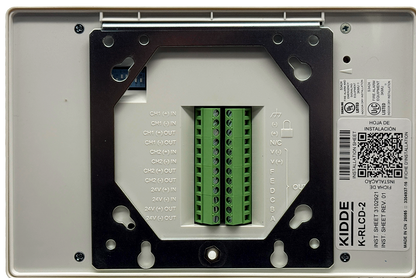

Data Wiring: 18 to 14 AWG twisted pair; maximum 4,000 ft
Expansion: Supports up to two K-RLED24-2 or K-RLED24R-2 LED zone expanders
Compatible Accessories:
K-RLED24-2 - 24-pair LED zone expander
K-RLED24R-2 - Red 24-pair LED zone expander
RA-ENC1 - One-position annunciator enclosure
RA-ENC2 - Two-position enclosure for annunciator and one expander
RA-ENC3 - Three-position enclosure for annunciator and two expanders
System Compatibility: Kidde Commercial FX64, FX1000, VS1, VS4, EVOLVE, and VM fire alarm control panels.
