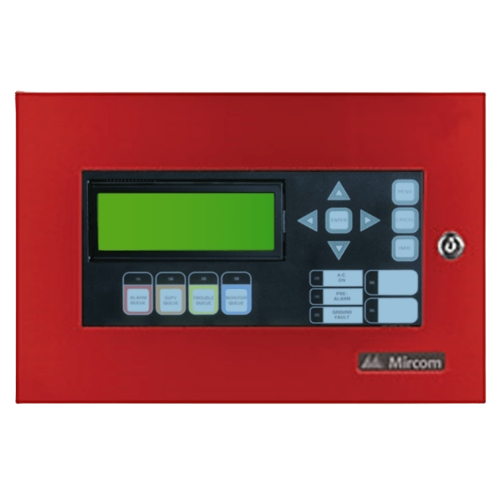

MIRCOM BB-1001DR

Mircom’s modular RA-1000 Series Remote Annunciators are multiplex annunciator panels that provide a large capacity of annunciation with the Mircom Fire Alarm Control Panels. The RA-1000 Series is comprised of three chassis models. The RAM-1032TZDS Main Annunciator Chassis consists of sealed membrane-like buttons and LED indicators. Complete with Common Control Features and Indicators, the RAM-1032TZDS Main Annunciator Chassis provides up to 32 points of annunciation and can be expanded with up to four RAX adder annunciator chassis modules. Defined via DIP switches, the RA-1000 Remote Annunciators are automatically configured to match the Fire Alarm Control Panel configuration. The RAX-1048TZDS Adder Annunciator Chassis has the same basic construction as the Main Annunciator Chassis and can provide up to 48 points of annunciation. It interconnects to either a RAM-1032TZDS Main Annunciator or a RAX-1048TZDS Adder Annunciator Chassis. Up to four RAX-1048TZDS Adder Annunciator Chassis’ can be connected to one RAM-1032TZDS. The annunciators come standard with Bi-colored LEDs to annunciate Alarm or Supervisory points. Each display point can be identified by the slide-in label that slides in beside the LED. The annunciator modules can mount into five various sized enclosures.
