MIRCOM FX-3318

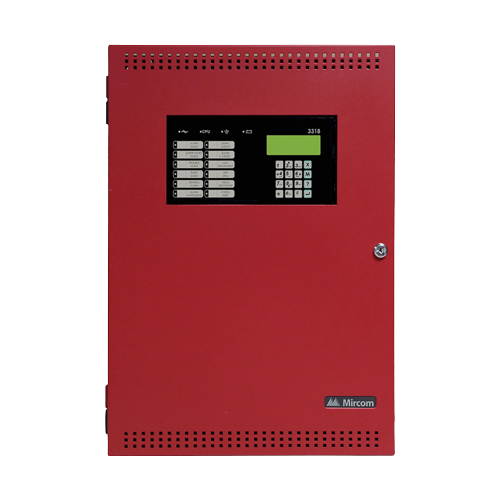

Mircom’s FX-3318 Addressable Fire Alarm Control Panel is an intelligent addressable multi-zoned panel with exceptional value while not compromising the Mircom features needed to satisfy small to medium jobs. The FX-3318 is shipped pre-assembled with all main components including: main board, power supply, transformer, and main display in a red enclosure. A built-in dialer is included to communicate panel status to the remote central monitoring station using 2 dedicated phone lines. Both SIA and Contact ID are supported Up to 7 annunciators can be added with enclosure options in red, white or NEW stainless steel. It has one built in signaling line circuit (SLC). With Mircom’s Advanced Protocol (AP) a superior group polling method as well as an interrupt feature, allows a faster response to an alarm. The AP or Advanced Protocol allows for greater system capacity with support for up to 318 devices in AP mode and offers legacy CLIP support of up to 198 devices. FX-3318 has four Power Limited Class B (Style Y) or Class A (Style Z) NAC circuits.
