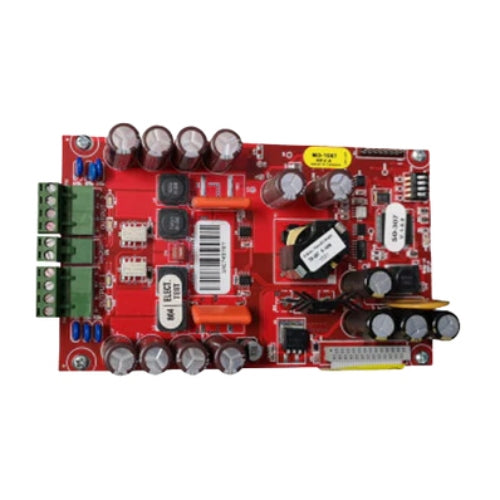

MIRCOM QAD-30

The QAD-30 is for projects where more audio power is needed, QAD-30 adds 30 watts and two fully supervised Class “A” (Style Z) or “B” (Style Y) speaker zones. Mounted to the main board, the QAD-30 can be selected for 70.7Vrms or 25Vrms output, and its frequency response is +/-3dB from 400 to 4000Hz.
