Product Details
Product Overview

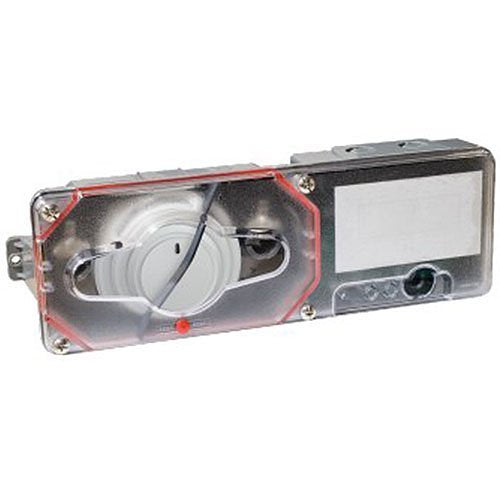

The PAD300-DUCTR is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. Air sampling is accomplished by two (2) tubes which protrude into the duct. An exhaust tube of one (1) standard length (7") is supplied in the installation kit with the smoke duct unit. Once the duct width has been determined, the air intake sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths: 2.5'., 5'., and 10'. and cut to size to fit the duct. Mounting the duct smoke unit is accomplished by the use of a template and two (2) sheet metal screws, which are provided. Mounting can be achieved without the removal of the clear cover which is secured by four (4) capture screws.
What’s Included
- Analog Addressable Duct Detector
- Installation Kit
- 1 x 7" Exhaust Tube
- 2 x Sheet Metal Screw
- 4 x Capture Screw
Main Features
- Detects Smoke in Building HVAC Ducts
- SLC Class A, Class X and Class B
- No Screens or Filters in Housing
- Ships Complete with Housing and Head
- Compatible with Addressable IPA and AFC/ARC Series Panels
- Installation Without Removing the Head
- Listed Air Velocity of 100' to 4,000' per minute
- Durable Plastic Enclosure and Clear Cover
- Compatible with Supervised PAD100-DRTS Remote Test Switch, MS-RA, MS-KA/R, MS-KA/P/R Remote Indicators
General Information
Name: Potter PAD300-DUCTR Analog Addressable Duct Detector, One form Relay, Compatible with Addressable IPA and AFC/ARC Series Panels, Gray and clear finish
Category: Potter Electric Signal, LLC, Fire, Fire Detection Devices & Accessories, Duct & Beam Smoke Detectors
UPC Code: 785192027669
Country of Origin: China. Country of origin is subject to change.
📄 Datasheet (Technical Specifications):
Download PAD300-DUCTR Datasheet (PDF)
📘 Installation Manual:
Download PAD300-DUCTR Manufacturer Brochure (PDF)
