Product Overview

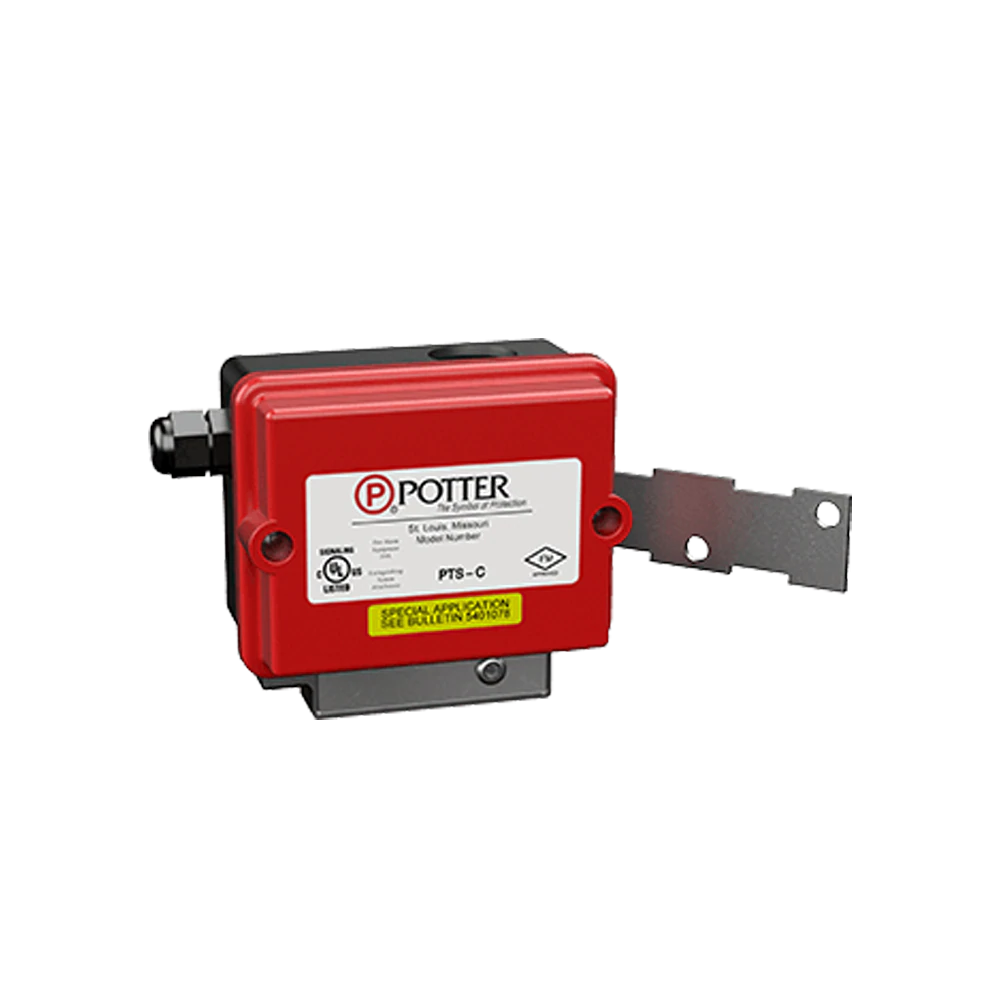

The Model PTS-C is designed to supervise sprinkler system control valves and may also be used to secure gates and other applications. This unit is particularly useful for unusual conditions, such as non-rising stem valves.
Nema 6P enclosure allows the device to be mounted outdoors, even in areas subject to flooding such as pits and wells. Sealed reed switch operation virtually eliminates contact corrosion.
Turning the valve wheel will pull the plug out of the receptacle. The plug cannot be reinserted after the operation until the plug receptacle cover is removed with the special hex key provided. This key should be left with the building owner or responsible party. Replacement or additional cover tamper screws and hex keys are available.
Main Features
UL and cUL Listed, FM Approved, CSFM Listed, NYMEA Accepted
Dimensions: 7 L x 3.75W x 3 D (including bracket)
Housing Cover Tamper: Activated by housing cover removal
Enclosure: Non-Corrosive Composite Material
Cable: 2-wire, 18 Ga. Waterproof - Approx. 8' (2,43m) long
Contact Ratings: SPDT Plug Contacts: 100 mA at 28 VDC/AC 250 mA at 12 VDC/AC SPDT Cover Tamper: 250 mA at 28 VDC/AC
NEMA 4 and NEMA 6P rated enclosure when proper electrical fi ttings are used. (IP67
Temperature range: -40° F to 140° F (-40° C to 60° C)
5 year warranty
General Information
Name: Potter PTS-C Plug-Type Supervisory Switch
Category: Potter Electric Signal, LLC, Fire, Water Flow Controls
UPC Code: 785192006749
Country of Origin: United States. Country of origin is subject to change.
