Schneider ERIE AG13A020

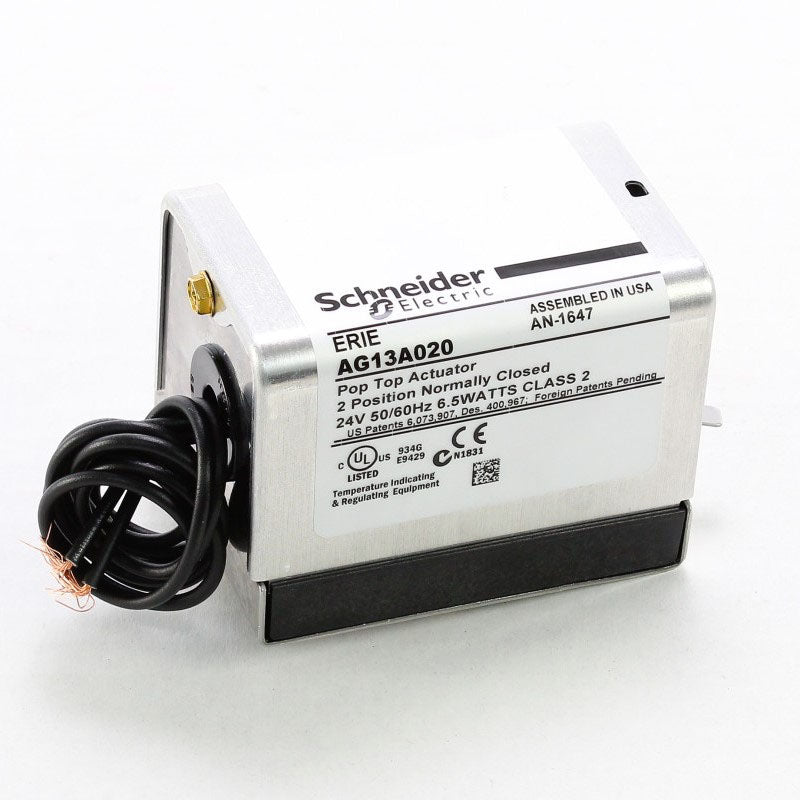

Erie AG13A020 Pop Top NC Zone Valve Head. No End Switch.
The PopTop™ series valve. bodies and actuators. . provide easy installation. for a variety of heating. . and cooling applications.. . The valve’s actuator can be. installed after the valve. . body has been installed onto. the fan coil,. . baseboard or air handler.. . Features:. . • Synchronous motor drive. with spring return.. . • Variety of voltages. available.. . • Mounts directly onto the. body without the need for linkages. . or calibration.. . • Manual override lever on. normally closed actuators.
Volts: 24 AC.
Electrical Position: Normally Closed (can only be used on 2-way valve).
Temperature Range: 32 to 200°F (Fluid)@ 104°F (Ambient) (0 to 93°C @40°C).
End Of Travel Switch: No.
Wiring: 18" Leads.
