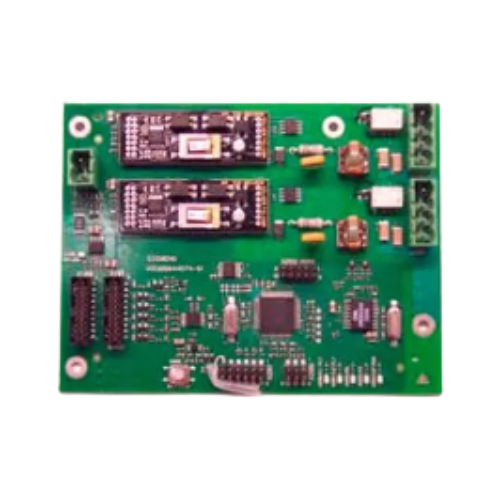

SIEMENS FCA2015-U1

The Digital Alarm Communicator Transmitter (DACT) is used to provide communication between either a 252-point or 504-point addressable Cerberus PRO system; one (1) Fire Terminal (Model FT924), and with either a central or remote monitoring station.

The Model FCA2015-U1 DACT module mounts directly on the back enclosure and connects to the periphery boards. Each DACT enables remote transmission of alarms and events via a public telephone line.

Additionally, Model FCA2015-U1 supports two (2) lines and four (4) accounts, and can transmit serial information (including the address of the event) to the monitoring station. Any of the accounts can send Alarm, Gas Alarm, Supervisory, Trouble, Reset, or Trouble-restore data (or any combination) as required. Each DACT can perform the automatic 24-hour test required by NFPA, Chapter 4. Model FCA2015-U1 is FM (#3010); CSFM (#7165-0067:0259) and FDNY (#6104) Approved.
