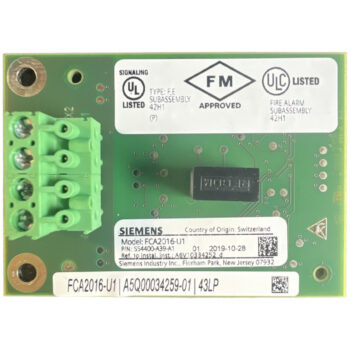

Siemens FCA2016-U1

Model FCA2018-U1 is remotely connected to the Model FCA2016-U1(RS-485) communication bus from any Cerberus PRO system enclosure. Model FCA2018- U1 uses Class B (Style 4) or Class A (Style 6) wiring and provides two (2) RS-232 (serial) ports and a single parallel port that allow connection to the parallel printer (Model PAL-1). When Model PAL-1 is used with the remote peripheral module, Model FCA2018- U1 supervises the printer for ON, OFF Line | POWER ON | PAPER OUT | PAPER JAM, and wiring-fault conditions, per UL for NFPA72 requirement for proprietary systems. Event / report printing is generated at the operating unit (Model FCM20-series) on the main Cerberus PRO system.
