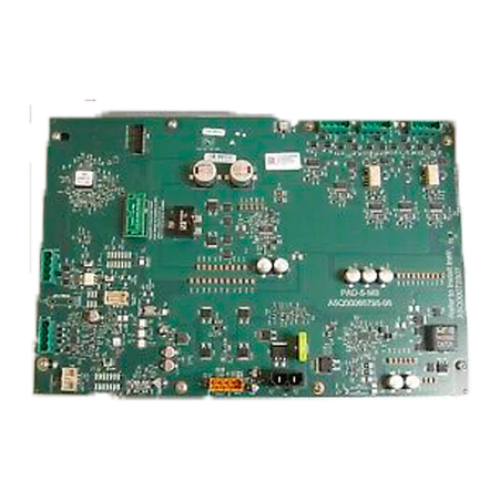

SIEMENS PAD-5-MB

The main board (Model PAD-5-MB) used with PAD-5 notification-extender units provides remote, auxiliary power for signaling appliances. Model PAD-5-MB also allows for expansion of notification appliances (NACs) that plug into each main board. Each PAD-5-MB main board connects via the P2 loop of a Siemens `X’-series Device Loop Card (Model XDLC) connected to the Siemens Modular fire-alarm control panel (FACP). Up to 32 Siemens PAD-5 main boards or mixture expansion cards can connect to one (1) Model XDLC at a time. Additionally, Model PAD-5-MB has one (1) address, and is programmed with the Siemens Device Programmer / Test Unit, Model DPU.
