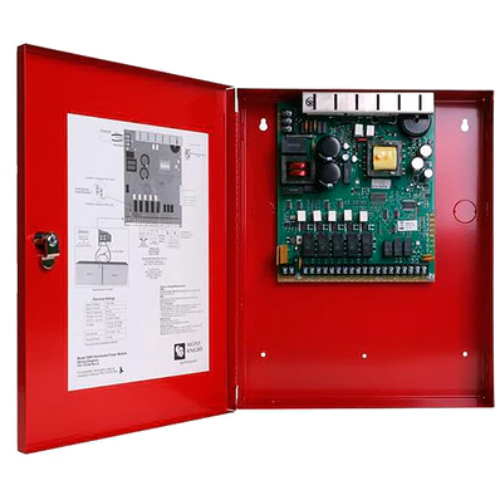

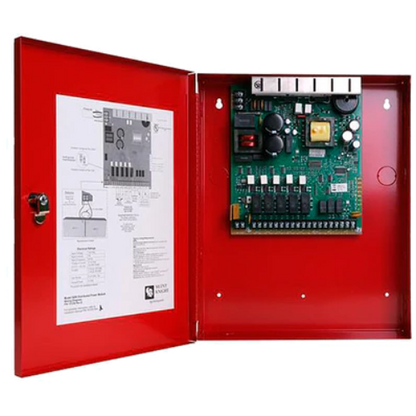

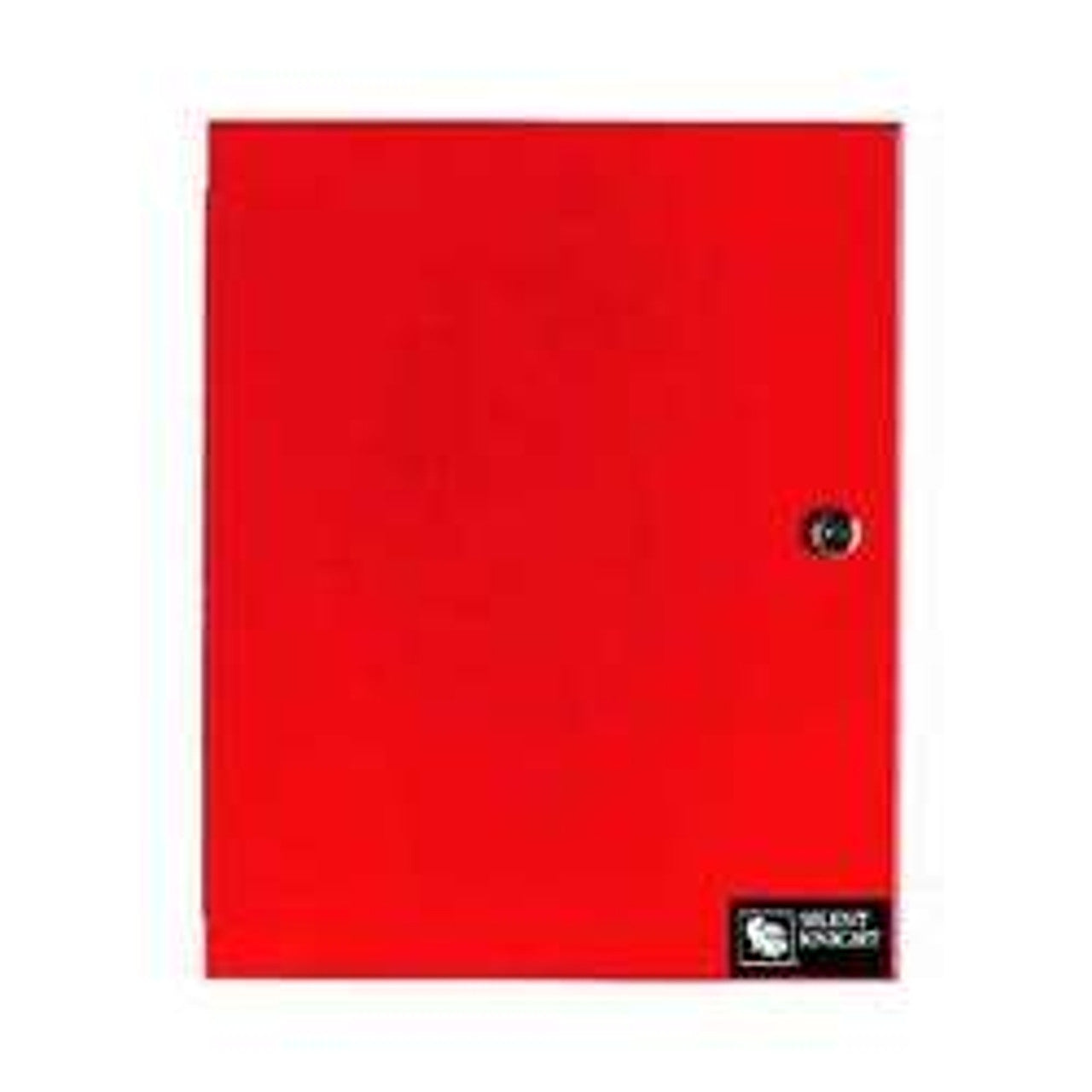

Silent Knight 5499 Distributed Power Module

The SILENT-KNIGHT-5499 is a 9 amp notification power expander that provides its own AC power connection, battery charging circuit, and backup battery for use with fire and security controls that have 9-32 VDC outputs.

The 5499 is the cost-effective solution for powering notification appliances required by the Americans with Disabilities Act (ADA). The 5499 has built-in ANSI cadence pattern, which can upgrade older control panels that lack cadence capability.

UPC: 783196009483
Also known as: SK-5499

Technical Specifications:
Dimensions: 12.25” W x 16” H x 3” D 30.88 cm W x 40.64 cm H x 7.62 D cm
Current: Standby: 75 mA, Alarm: 205 mA
Output: 24 VDC at 9 A
AC Input: 120 VAC at 3.0A
