Product Details
NOTE: This part is discontinued by the manufacturer. Replace with: IDP-Photo-IV

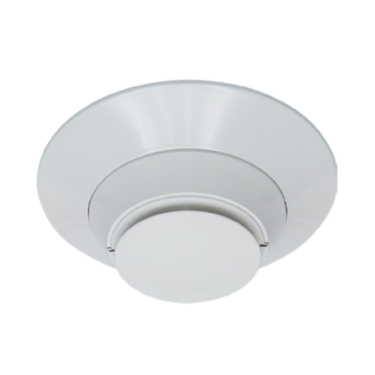

The Silent Knight IDP-Photo Photoelectric Smoke Detectoris designed for use with Silent Knight IFP-series fire alarm control panels (FACPs). Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP.

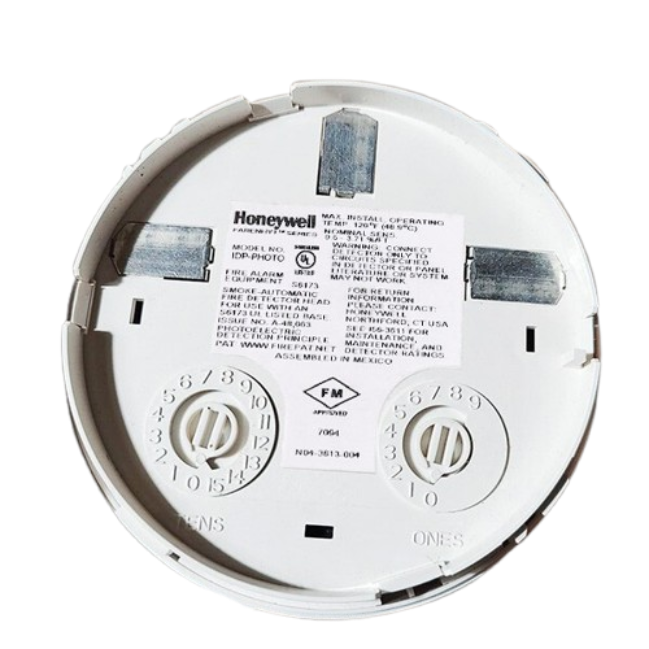

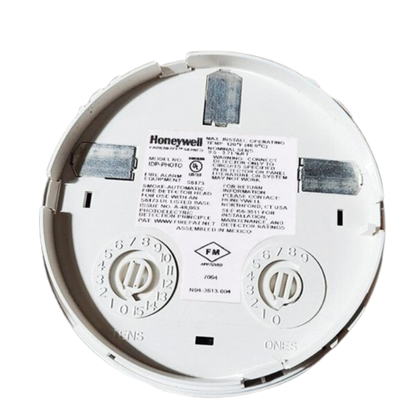

Point ID capability allows each detector’s address to be set with rotary address switches.
COMPATIBLE FACPs:
IFP-1000 Intelligent Fire Panel
IFP-100 Intelligent Fire Panel
IFP-50 Intelligent Fire Panel
COMPATIBLE IDP-SERIES BASES and ACCESSORIES:
IDP-6AB 6” Mounting Base
SSB501 4” Mounting Base
SSB224BI 6” Isolator Base
SSB224RB 6” Relay Base
SSB501BHT 6” Temporal Sounder Base
SSRA400Z Remote LED Annunciator.
SSRMK400 Recessed Mounting Kit. Provides low profile for use with SSB501.
SSXR2B Detector Removal Tool. A removal and replacement tool for IDP plug-in detectors. Includes the SST55-127-000.
SSM02-04-01 Detector Test Magnet.
SSM02-09-00 Test Magnet with Telescoping Handle.
SSXP-4 Extension Pole for SSXR2B. Extends from 5 – 15 ft.
SST55-127-000 Detector Removal Head.
SSBCK-200B Black Detector Kit. For IDP-series detectors.
