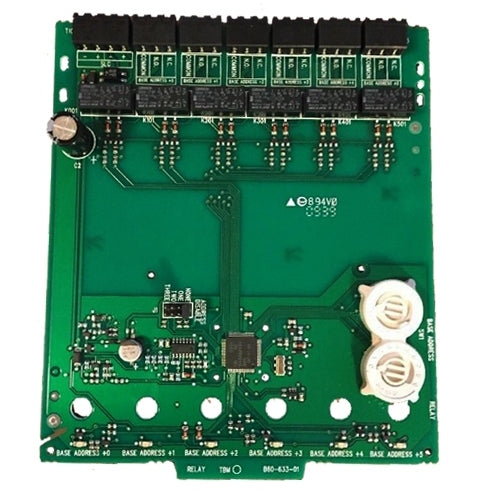

SILENT KNIGHT IDP-RELAY-6

The Silent Knight IDP-Relay-6 is an addressable module. Use with Silent Knight IFP-series fire alarm control panels (FACPs). Has six Form C relays. It allows a Silent Knight FACP to switch discrete contacts by code command. You can disable a maximum of three unused modules on the IDP-Relay-6 board. No supervision is provided for the notification appliance circuit.

The Silent Knight IDP-Relay-6 contacts can b e used for virtually any normally open or normally closed application. Each IDP-Relay6 i s programmed with a unique signaling line circuit (SLC) loop address. Controls the IDP-Relay-6, the relay i s triggered by the FACP. Mounts in the Silent Knight IDP-ACB cabinet (PN IDP-ACB). The IDP-ACB has a built-in chassis that will accommodate one or two IDP-Relay-6 modules

Features / Specifications

Six Form C contacts
Removable 12 to 18 AWG plug-in terminal blocks
Relay programming i s completely flexible–can b e mapped to zone conditions
Individual LED for each relay contact
Two module mounting in the IDP-ACB cabinet
Up to three unused modules can b e disabled
Rotary address switches for fast installation
Mounting hardware included
Operating Temperature: 32ºF – 120ºF (0ºC – 49ºC)
Humidity: 10% – 93% non-condensing
Operating Voltage: 15 – 32 VDC
Wire Gauge: 12 – 18 AWG
SLC Loop Resistance: 40W max
I s an addressable module. Use with Silent Knight IFP-series fire alarm control panels (FACPs). Has six Form C relays. It allows a Silent Knight FACP to switch discrete contacts by code command. You can disable a maximum of three unused modules on the IDP-Relay-6 board. No supervision is provided for the notification appliance circuit.

Used for virtually any normally open or normally closed application. Programmed with a unique signaling line circuit (SLC) loop address.
