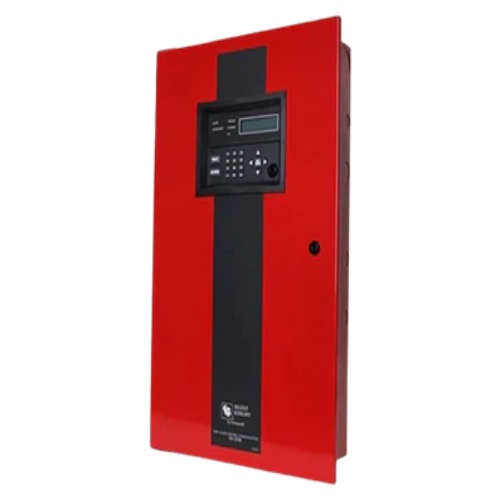

Silent Knight SK-5208 Fire Alarm Control Panel with Digital Communicator

The Silent Knight SK-5208 is a microprocessor-based control panel that monitors smoke detectors, manual pull stations, and sprinkler supervision in a variety of commercial, industrial, and institutional environments.

With an easy to navigate LCD display and programmable English readout, the SK-5208 supervises 10 zones, but is expandable up to 30. It boasts 8 selectable/programmable output patterns for notification appliance circuits and four programmable general purpose relays.

UPC: 783196008851
Also known as: SK5208

Technical Specifications:
Overall Dimensions: Height: 26-3/8” (67 cm), Width: 17-3/16” (43.66 cm), Total Depth: 4” (10.16 cm)
Flush Mounting Dimensions: Height: 24.75” (62.9 cm), Width: 14.5” (36.8 cm), Depth: 3-7/16” (8.73 cm) with 5/8” protruding
Current Draw: Standby: 140 mA; Alarm: 460 mA
Total DC Load: 6 Amp
Primary AC: 120 Vrms @ 60Hz, 2A
Operating Voltage: 24 VDC
