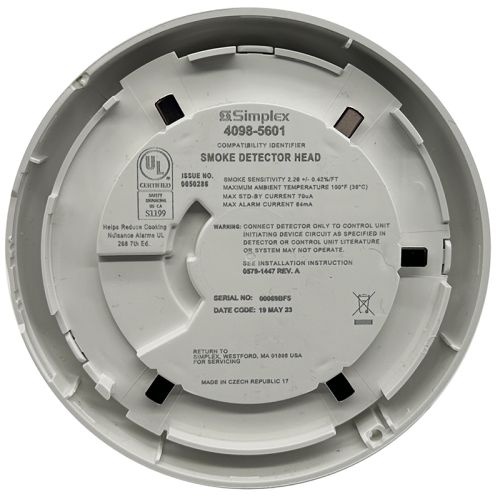

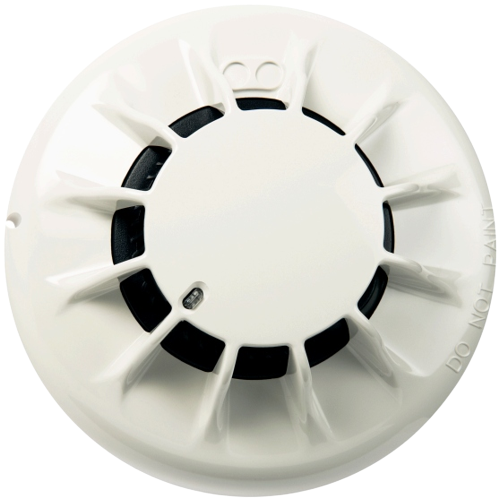

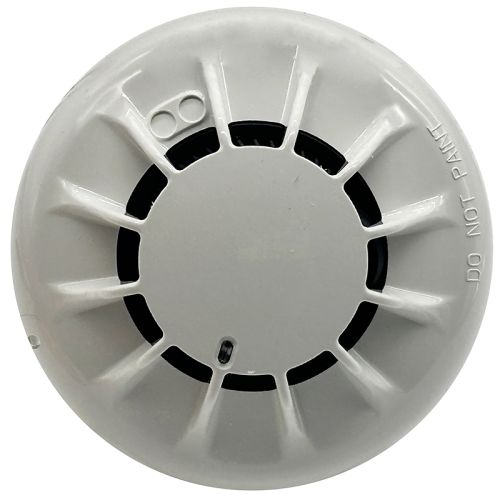

The Simplex 4098-5601 is a conventional photoelectric smoke detector for Simplex two-wire and four-wire detector bases, offering microprocessor-based smoke analysis, drift compensation, and a built-in red status LED. It is designed for indoor wall or ceiling mounting and supports remote LED or relay functions when used with compatible bases.
NOTE: This detector replaces 4098-9601. Use with a compatible current-style 4098 base, such as 4098-5207; older 4098 series bases are not compatible.
Key Specifications:
Type: Conventional photoelectric smoke detector
Core Function(s): Detects smoke using photoelectric light-scattering sensing with onboard data evaluation
Loop/Protocol: Conventional IDC; two-wire or four-wire base operation
Power: 10.5 to 33 VDC on two-wire bases; 15 to 32 VDC rated voltage on four-wire bases
Indicators/UI: Red LED pulses about every 4 seconds in normal condition and stays on in alarm
Sensing: Photoelectric smoke detection with sensitivity drift compensation and dirty detector indication
Operating Range: 32 F to 100.4 F; 10% to 95% RH non-condensing; 0 to 2000 FPM air velocity
Standby Current: Less than 70 uA
Alarm Current: 64 mA at 30 VDC, 33 mA at 20 VDC, or 14.5 mA at 12 VDC
Mounting: Indoor ceiling or wall mounting with a compatible detector base
Compatible Bases & Accessories:
4098-5207 - Two-wire 5-inch base with remote alarm LED connections
4098-5680 - Two-wire 5-inch base with auxiliary alarm relay and remote LED connections
4098-5682 - Four-wire 5-inch base with auxiliary alarm relay contacts and remote LED connections
4098-9830 - Remote LED indicator
2098-9739 - Encapsulated 24 VDC end-of-line relay
