Product Details

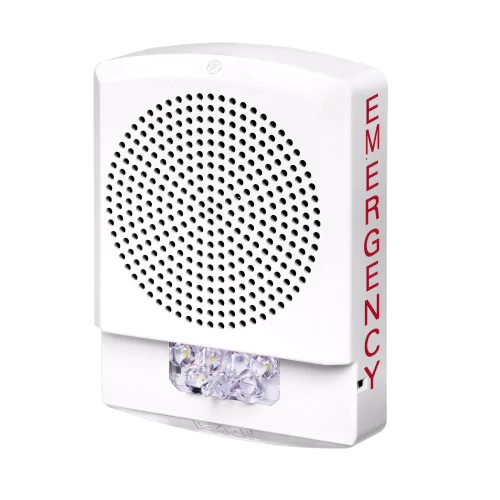

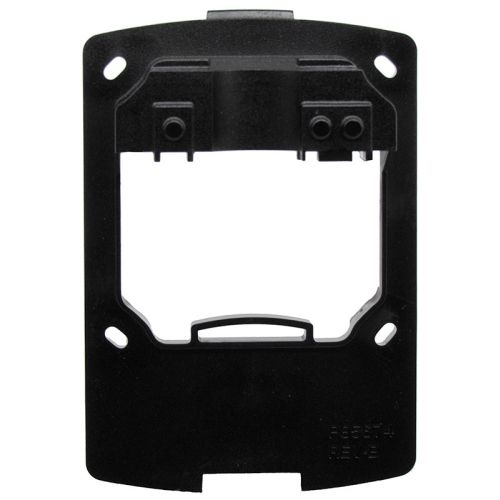

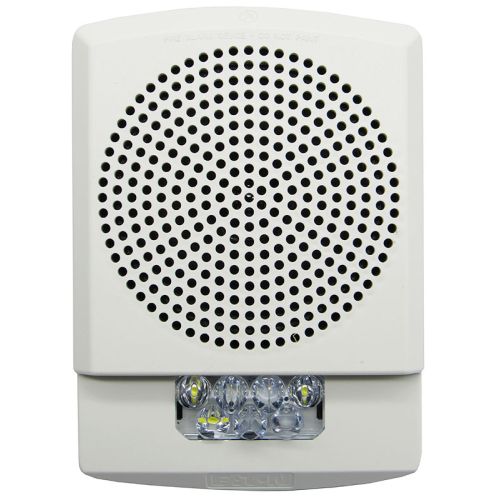

The Wheelock ELSPSTW is an Eluxa high fidelity wall speaker strobe for indoor fire alarm and emergency communications, combining a 25/70 VRMS speaker with a 24V LED multi-candela strobe. It provides five field-selectable speaker taps and six selectable wall candela settings, with a mounting plate included for pre-wire and final installation.
Key Specifications:
Type: High fidelity wall speaker strobe
Core Function(s): Voice and tone notification on supervised speaker circuits with integrated LED strobe for visual signaling
Loop/Protocol: Speaker 25 or 70 VRMS; Strobe 24 VDC or 24 VFWR (synchronization supported with compatible sync equipment)
Power: Speaker taps 1/8, 1/4, 1/2, 1, or 2 watts (5W at 70V); strobe operates from 16.0 to 33.0 VDC/VFWR with wall candela settings 15, 30, 75, 110, 135, 185 cd

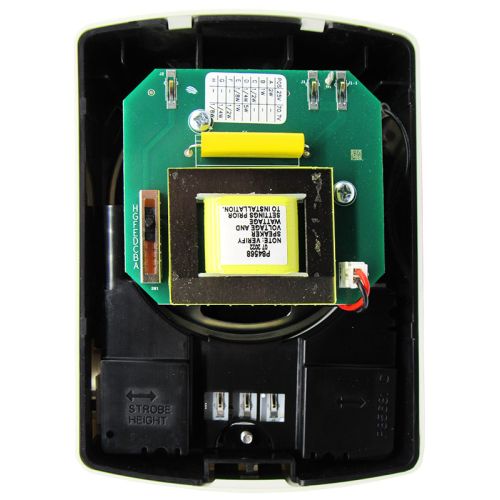

Indicators/UI: Finger slide speaker tap selector, tamper-resistant candela selector, built-in level adjustment, snap-on grille cover
Compatible Backboxes & Accessories:
ELSPKBB-W – White wall backbox for Eluxa wall speaker and speaker strobe models
System Compatibility: Suitable for systems providing supervised 25/70 VRMS speaker circuits and 24 VDC/VFWR strobe circuits, with synchronization available when used with compatible Wheelock sync methods.
📄 Datasheet (Technical Specifications):
Download ELSPSTW Datasheet (PDF)
📘 Installation Manual:
Download ELSPSTW Installation Manual (PDF)
